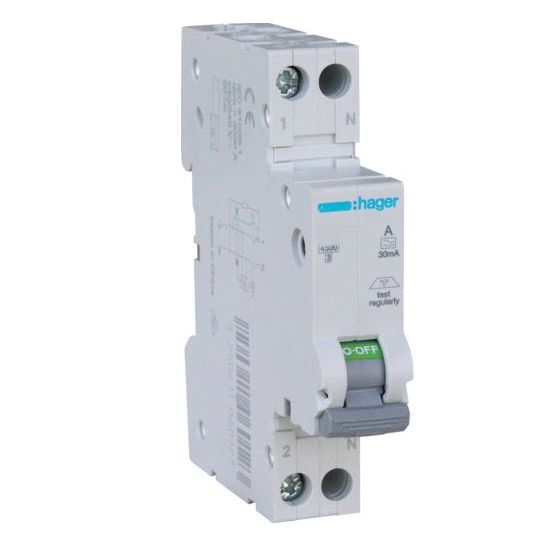

Hager Combination RCD Circuit Breaker RCBO 1P+N 16 Amp 230/240V AC 4.5 kA 1Module 17.8mm DIN Rail

Description

Combination RCD Circuit Breaker RCBO, 16 Amp, 230/240 Volt AC, 50 Hz, Interrupt Capacity: 4.5 kA, Trip Sensitivity: 30 mA, Magnetic Rating: 5/10 In, Number of Poles: 1P + N, Number of Modules: 1, 17.8mm Module Width, Trip Characteristic: C Curve, 0.75/10 mm Flexible, 0.75/16 mm Rigid Terminal Connection, Screw, IP20, DIN Rail, 90mm Height, 17.8mm Width, 73mm Depth

Key Specifications

Barcode (EAN-13)	3250611060093
SKU	HAGADA316T
Brand	Hager
Range Name	onekombo
Product Type	Combination RCBO

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	ADA316T
Current	16 Amp
Connection Type	Screw
Depth	73 mm
Height	90 mm
Frequency	50 Hz
IP Rating	IP20
Interrupt Capacity	4.5 kA
Modules	1 Module 17.8 mm
Mounting Method	DIN Rail
Number Of Poles	1 Pole
Terminal Connection	0.75 / 10 sq-mm Flexible / 0.75 / 16 sq-mm Rigid
Trip Characteristic	C Curve
Voltage	230-240 Volt
Trip Sensitivity	30 mA
Width	17.8 mm
