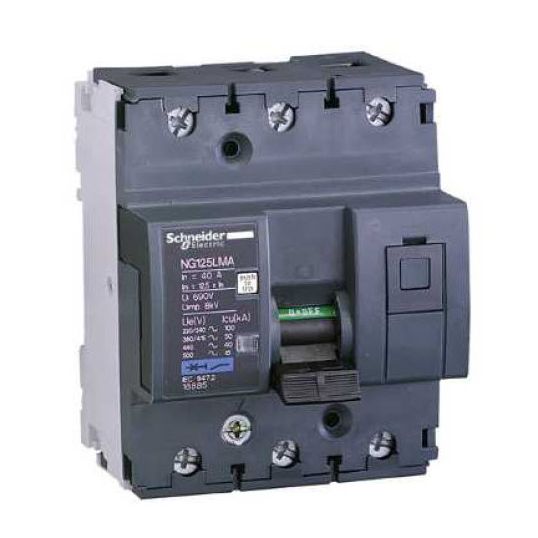

Schneider Miniature Circuit Breaker Magnetic 3 Pole 50 kA 25 Amp

Description

Miniature Circuit Breaker, 380-415, 500, 220-240, 440 Volt AC, 25 Amp, 50/60 Hz, Interrupt Capacity: 50 kA, Number of Poles: 3, Magnetic Setting: 12 x In, Magnetic Trip, Toggle, Manual Tripping Test Actuator, Tunnel Terminal, IP20 Conforming to IEC 60529, 35mm Symmetrical DIN Rail,-30 to 70 deg C, 103mm Height x 81mm Width x 81mm Depth

Key Specifications

Barcode (EAN-13)	3303430188841
SKU	MEG18884
Brand	Schneider
Range Name	NG125LMA
Product Type	Mini Circuit Breakers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	18884
Current	25 Amp
Actuator Type	Toggle/Manual Tripping Test
Depth	81mm
Frequency	50/60 Hz
IP Rating	IP20
Height	103mm
Interrupt Capacity	50 kA
Magnetic Setting	12 x In
Mounting Method	DIN Rail
Number Of Poles	3 Pole
Temperature	-30 to 70 deg C
Terminal Type	Tunnel
Trip Type	Magnetic
Voltage	380-415-500-220-240-440 Volt
Width	81mm
