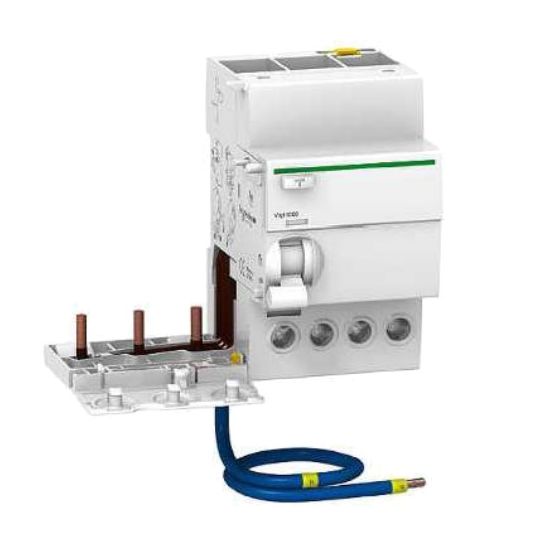

Schneider Earth Leakage Add On Block 3P+N Pole 63 Amp DIN Rail Mount Clip-on Tunnel IP20/IP40 Conforming to IEC 60529
Loading...
Description
Earth Leakage Add On Block, 63 Amp, 400-415 Volt AC, 3 + N Pole, Tunnel Terminal, DIN Rail/Clip-On Mounting, IP20/40, 5 to 60 deg C, 91 mm Height, 108 mm Width, 73.5 mm Depth, For Use With Acti 9 iC60 Miniature Circuit Breakers MCBs
Key Specifications
| Barcode (EAN-13) |
3606480551833
|
|---|---|
| SKU |
SHNA9V06763
|
| Brand |
Schneider
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | A9V06763 |
| Current | 63 Amp |
| For Use With | Acti 9 iC60 Miniature Circuit Breakers MCBs |
| Height | 91 mm |
| Depth | 73.5 mm |
| IP Rating | IP20/40 |
| Number Of Poles | 3 Pole |
| Mounting Method | DIN Rail/Clip-On |
| Temperature | 5 to 60 deg C |
| Product Type | simple |
| Width | 108 mm |
| Voltage | 400-415 Volt AC |
| Terminal Connection | Tunnel |
Downloads
