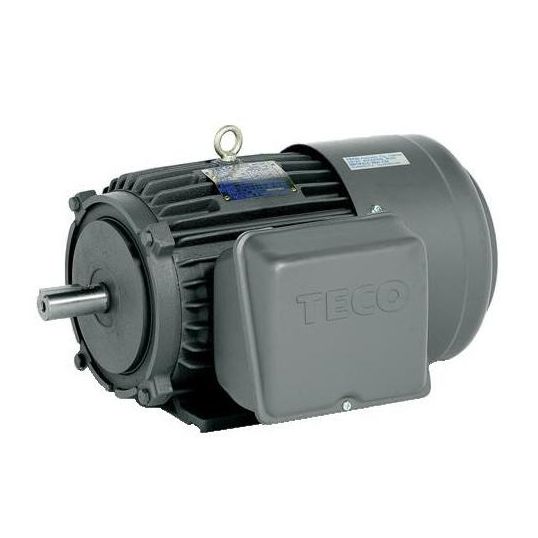

Teco Electric Motor Squirrel Cage Induction 4P 1.1kW 1Ph 240V D90S Frame Foot/Flange Mount

Description

Electric Motor Squirrel Cage Induction, 240 Volt AC, 8.8 Amp, 1.1 kW, 50 Hz, 1 Phase, 1445 rpm, 4 Pole, IP44, Frame: D90S, Shaft Size: 24 mm, Bi-Directional Rotation, Duty Cycle: S1, Single Row Deep Groove Bearing, Torque: 7.3 N/m, Foot/Flange Mount, Insulation Class: Class H/F, -10 to 40 deg C, Cast Iron, 406 mm Length x 200 mm Height

Key Specifications

SKU	TEO036/E01.1BF4
Brand	Teco
Range Name	BECY Cast Iron Metric
Product Type	Motors SCIM

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Totally enclosed fan cooled Highest quality insulation system utilizing Class H and F materials Low temperature rise for substantial thermal reserve Continuous rated, duty type S1 Steel terminal/capacitor box and fan cover Manual overload protection
Standard Pack Size	1
UNSPSC Class	26101100
UOM	EA
Vendor Product	036/E01.1BF4
Current	8.8 Amp
Bearing Type	Single Row Deep Groove
Frame	Size D90S
Frequency	50 Hz
Height	200 mm
Horsepower	1.1 kW
Insulation Class	Class H/F
IP Rating	IP44
Material	Cast Iron
Mounting Method	Foot/Flange
Number Of Poles	4 Pole
Phase	1 Phase
Shaft Size	24 mm
Rotation	Bi Directional
Speed	1445 rpm
Temperature	-10 to 40 deg C
Torque Rating	7.3 N/m
Voltage	240 Volt AC
