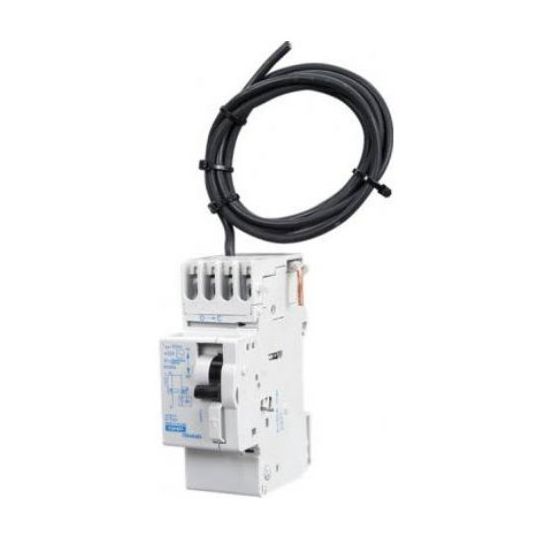

Terasaki Add-On Earth Leakage Module 1P+ N 32 Amp 240V AC 10 kA 2Module 36mm DIN Rail

$Terasaki\Terasaki_DSRCM_IP-N.jpg$

Description

Add-On Earth Leakage Module, 32 Amp, 240 Volt AC, 50/60 Hz, Interrupt Capacity: 10 kA, Trip Sensitivity: 30 mA, Number of Poles: 1P + N, Number of Modules: 2, 36mm Module Width, 1-16 mm Terminal Connection, IP40, IP20, DIN 35mm Rail,-5 to 60 deg C, 86mm Height, 36mm Width, 76mm Depth

Key Specifications

Barcode (EAN-13)	5413656772347
SKU	TERDSRCM-32-30-1PN
Brand	Terasaki
Range Name	Din-Safe-M
Product Type	Earth Leakage

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	DIN-SAFE Add-on-Modules feature 10kA conditional short circuit rating Suits pole-covers, loadcentres and the Concept range of panelboards
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	DSRCM32301PN
Current	32 Amp
Depth	76 mm
Height	86 mm
Frequency	50/60 Hz
IP Rating	IP40/20
Interrupt Capacity	10 kA
Modules	2 Module 36 mm
Mounting Method	DIN Rail
Number Of Poles	1 Pole
Terminal Connection	1-16 sq-mm
Temperature	-5 to 60 deg C
Voltage	240 Volt
Trip Sensitivity	30 mA
Width	36 mm
