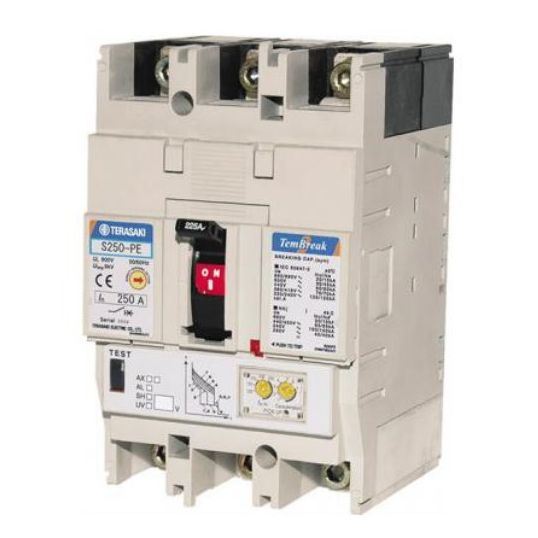

Terasaki Moulded Case Circuit Breaker Electronic 3 Pole 70 kA 250 Amp
Loading...
Description
Moulded Case Circuit Breaker, 690 Volt AC, 250 Amp, Interrupt Capacity: 70 kA, Number of Poles: 3, Thermal Setting: 100-250 Amp Adjustable, 250 AF Frame, Electronic Trip, Front, 165mm Height x 105mm Width x 103mm Depth
Key Specifications
| SKU |
TERS250PE3250
|
|---|---|
| Brand |
Terasaki
|
| Range Name |
TemBreak 2 S250PE
|
| Product Type |
MCCBs
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | S250PE3250 |
| Current | 250 Amp |
| Depth | 103 mm |
| Frame Type | 250 AF |
| Height | 165 mm |
| Interrupt Capacity | 70 kA |
| Mounting Method | Front |
| Number Of Poles | 3 Pole |
| Thermal Setting | 100-250 Amp Adjustable |
| Trip Type | Electronic |
| Voltage | 690 Volt |
| Width | 105 mm |
