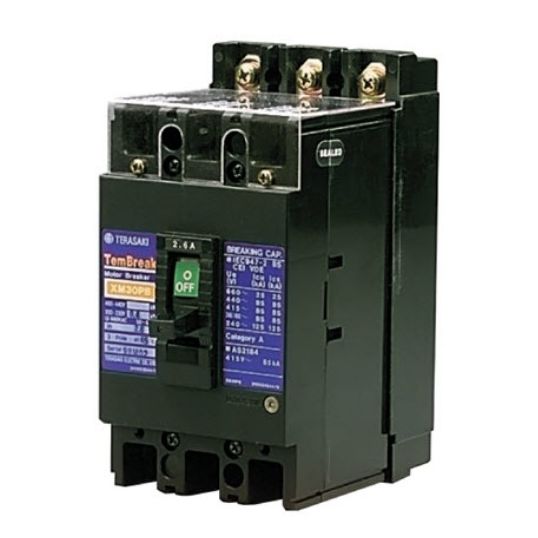

Terasaki Motor Rated Moulded Case Circuit Breaker Fixed Hydraulic Fixed Magnetic 3 Pole 85 kA 2 Amp

Description

Motor Rated Moulded Case Circuit Breaker, 525 Volt AC, 2 Amp, 50/60 Hz, Interrupt Capacity: 85 kA, Number of Poles: 3, 1, 3, 30 AF Frame, Fixed Hydraulic, Fixed Magnetic Trip, Screw Terminal, Front,-5 to 60 deg C, 148mm Height x 78mm Width x 102mm Depth

Key Specifications

SKU	TERXM30PS/2
Brand	Terasaki
Range Name	TemBreak
Product Type	MCCBs

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	1 or 3 phase motor starting MCCB, MCC applications Current limiting device, reduces fault let through energy for increased installation safety Panel mount standard with plug-in option Wide range of accessories for application flexibility Hydraulic magnetic trip unit: fixed long time/fixed magnetic Trip units; 0.7, 1.4, 2.0, 2.6, 4.0, 5.0, 8.0, 10, 12 A
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	XM30PB23P
Current	2 Amp
Depth	102 mm
Frame Type	30 AF
Frequency	50/60 Hz
Height	148 mm
Interrupt Capacity	85 kA
Mounting Method	Front
Number Of Poles	3 Pole
Temperature	-5 to 60 deg C
Terminal Type	Screw
Trip Type	Fixed Hydraulic/Fixed Magnetic
Voltage	525 Volt
Width	78 mm
