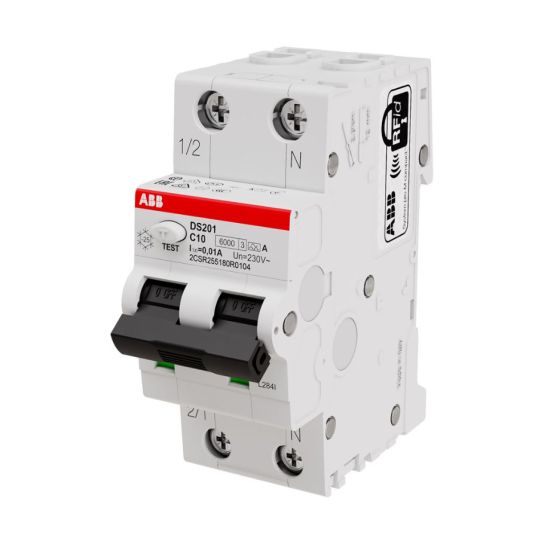

ABB Combination RCD Circuit Breaker RCBO 1 Pole+N 10 Amp 230V AC 6 kA 2Module 36mm DIN Rail

Description

Combination RCD Circuit Breaker RCBO, 10 Amp, 230 Volt AC, 50 Hz, Interrupt Capacity: 6 kA, Trip Sensitivity: 30 mA, Number of Poles: 1P + N, Number of Modules: 2, 36mm Module Width, Trip Characteristic: C Curve, IP4X (Housing), IP2X (Terminals), DIN Rail,-25 to 55 deg C, 85mm Height, 35mm Width, 69mm Depth

Key Specifications

Barcode (EAN-13)	8012542952503
SKU	ABBDS201C10A30
Brand	ABB
Product Type	Combination RCBO

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	DS201C10A30
Current	10 Amp
Height	85 mm
Depth	69 mm
Modules	2 Module 36 mm
Frequency	50 Hz
Interrupt Capacity	6 kA
Mounting Method	DIN Rail
IP Rating	IP4X/2X
Number Of Poles	1 Pole
Temperature	-25 to 55 deg C
Trip Characteristic	C Curve
Trip Sensitivity	30 mA
Voltage	230 Volt
Width	35 mm
