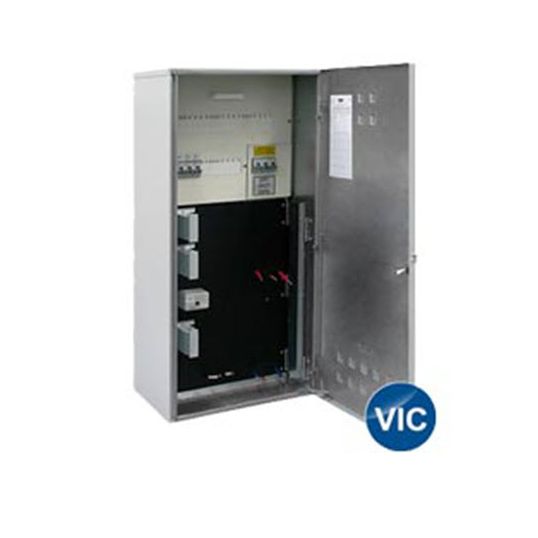

B&R Meter Box Group Metering Victoria Prewired 7m x 100 Amp Single Phase W800mm H1200mm D440mm Steel Galvanised

$B-R\B-R_GMPV.jpg$

Description

Meter Box Group Metering Victoria Prewired, Service Facilities: 7 mtr x 100 Amp, 1 Phase, IP23, DIN-Rail, Steel Body, RAL 7035, Galvanised, 1200mm Height, 800mm Width, 440mm Depth

Key Specifications

Barcode (EAN-13)	9321228053588
SKU	B&RGMPV07
Brand	B&R
Product Type	Meter Boxes Group Metering

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Designed for both single and multi-phase installations Pre-wired and unwired solutions for multiple tenancy installations in all areas of Victoria Pre-wired and ready to fit meter Ample DIN space Upgradeable to include supply capacity control Manufactured from 1.0mm galvanised steel to Z275 Powder coated light grey RAL7035 40 Amp tenancy sub-main MCBs Meter fuse holders Service protection device fuse holders
Standard Pack Size	1
UNSPSC Class	39121100
UOM	EA
Vendor Product	GMPV07
Colour	Grey
Enclosure Depth	440 mm
Enclosure Height	1200 mm
Enclosure Width	800 mm
Finish	Galvanised
IP Rating	IP23
Material	Steel
Mounting Method	DIN Rail
Service Facilities	7 mtr x 100 Amp/1 Phase
