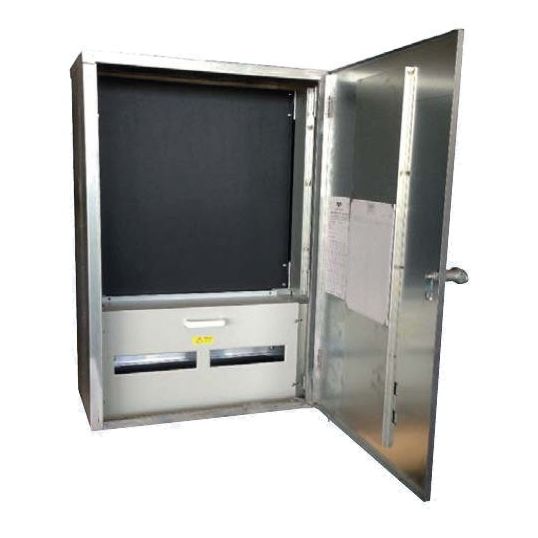

B&R Meter Box Group Metering Unpainted With DIN 24 Pole W600mm H900mm D343mm Steel Galvanised

chevron-left
loader
Loading...

Description

chevron-down
Meter Box Group Metering Unpainted With DIN, 24 Poles, 560mm Panel Height, 550mm Panel Width, IP23, Steel Body, RAL 7035, Galvanised, 900mm Height, 600mm Width, 343mm Depth

Key Specifications

chevron-down
Barcode (EAN-13)
9321228014909
SKU
B&RJB/PU
Brand
B&R
Product Type
Meter Boxes Group Metering

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Designed for multiple tenancy sites in residential and commercial metering applications
  • For use in all states except Victoria and Western Australia
  • Ample DIN space
  • Padlockable handle available as an accessory
  • Lift-off door for easy installation
  • Sales in NSW supply authority regions require GMEPLK locking handle
  • Manufactured from 1.0mm galvanised steel to Z275
  • Powder coated light grey RAL7035
  • Key lockable door handle
  • Black panel
Standard Pack Size 1
UNSPSC Class 39121100
UOM EA
Vendor Product JB/PU
Enclosure Depth 343mm
Enclosure Width 600mm
Enclosure Height 900mm
Panel Width 550mm
Panel Height 560mm
Number Of Poles 24 Pole
Finish Galvanised
IP Rating IP23
Material Steel
Colour RAL7035 Grey
