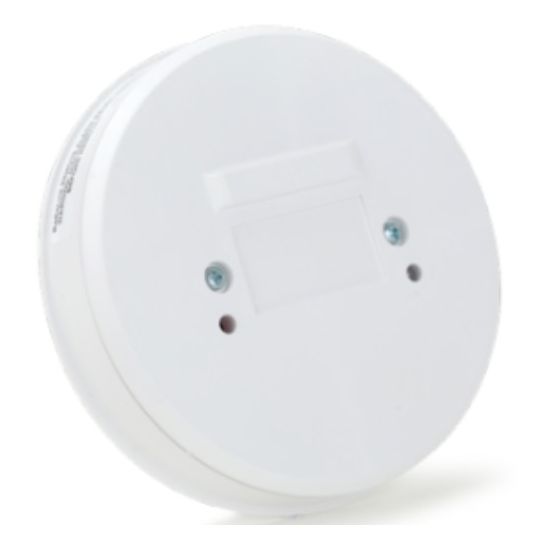

Brooks Relay Module Wireless Mains Powered 230 VAC Plastic 141mm x 26mm Rechargeable Lithium Battery

chevron-left
loader
Loading...

Description

chevron-down
Relay Module, Wireless, Mains Powered, 230 Volt AC, 40 mA, 926.365 MHz, Rechargeable Lithium, Coverage: Up to 12 Device, 15-95% RH, Plastic, 0-40 deg C, 141mm Dia x 26mm D

Key Specifications

chevron-down
SKU
BROEIB428RF
Brand
Brooks
Product Type
Relay Modules

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • RF range 100mtr (minimum) in free space
  • Green LED Mains Indicator Light
  • Uniquely coded to work with one system only
  • Low power battery warning in the event of a battery f
  • Rechargeable lithium battery back-up
  • Wireless interconnect with up to 12 RadioLINK devices
Standard Pack Size 1
UNSPSC Class 46191500
UOM EA
Vendor Product EIB428RF
Battery Type Lithium Batteries
Coverage Up to 12 Devices
Current 40 mA
Dimensions 141 mm Dia x 26 mm D
Frequency 926.365 MHz
Humidity 15-95% RH
Material Plastic
Temperature 0-40 deg C
Voltage 230 Volt AC
