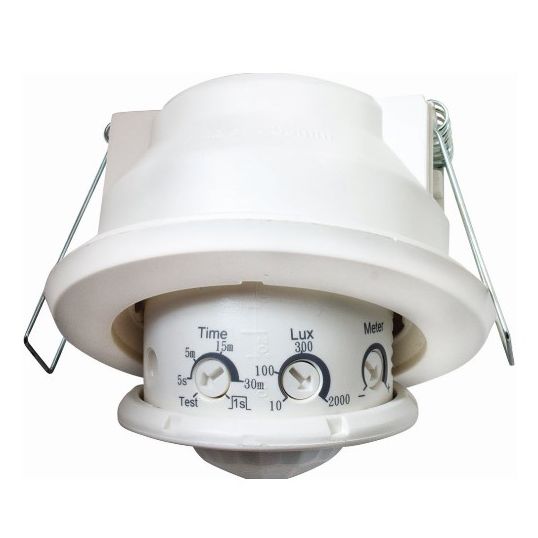

S-Click Presence Detector 360deg 10M 1 Channel 10A 230V IP40/20 Ceiling Mount

$S-Click\S-Click_CPD-360.jpg$

Description

Presence Detector 1 Channel, 230 Volt, 10 Amp, 50/60 Hz, 10-2000 Lux, Number of Channels: 1, Detection Angle: 360 deg, Detection Distance: 10 Mtr, IP40, IP20, Ceiling Mount, 0/45 deg C, 80 mm Diameter, 53 mm Height

Key Specifications

Barcode (EAN-13)	9318674251804
SKU	CAACPD-360
Brand	S-Click
Product Type	Presence Detectors

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Designed as a single load for controlling lighting devices Down light construction for different thickness of ceiling board mounting, enables easy and quick insatallation Omni-directional quad element detector integrated with the unique lens provided 'no dead spot' zones and superior sensitivity in its 360 degree detection coverage Two relays for switching lighting and HVAC(heater, ventilation, air, conditioning, etc) respectively One additional slave detector extendable for enlarging detection coverage Built-in red LED as an indicator for simplifying and easy test operation RJ-12 plug and socket for sensor and power box quick and easy installation The hinged top covers of power box are convenient for quick connection Manual override feature
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	CPD-360
Detection Angle	360 deg
Current	10 Amp
Detection Distance	10mtr
Diameter	80mm
Frequency	50/60 Hz
Height	53mm
Intensity	10-2000 Lux
IP Rating	IP40/20
Mounting Method	Ceiling
Number of Channels	1
Temperature	0/45 deg C
Voltage	230 Volt
