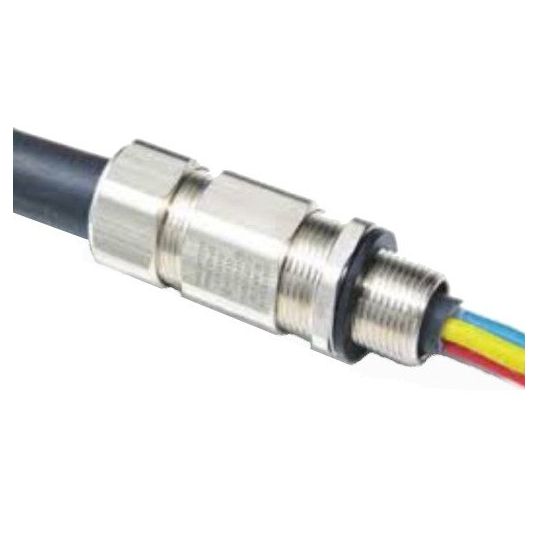

Cable Gland Barrier Type Armoured M16 5-10.5mm IP66/68

Product Code
CCG057100-16
Std Pack Size
1

You need to be registered and logged in to view product details and pricing

Description

Cable Gland, Barrier Type, Armoured, M16, 15 mm Thread Length, 1.5 mm Pitch, 5 mm Min. Sheath OD, 10.5 mm Max. Sheath OD, 25/27 mm Width Across Flats, 28/30 mm Width Across Corners, 0.2 mm Min. Armour Wire, 0.9 mm Max. Armour Wire, 21 N/m, IP66/68, Thermoplastic Elastomer Seal, Brass Body, Nickel Plated Finish, -20 to 95 deg C, 75 mm Length
Cable Gland, Barrier Type, Armoured, M16, 15 mm Thread Length, 1.5 mm Pitch, 5 mm Min. Sheath OD, 10.5 mm Max. Sheath OD, 25/27 mm Width Across Flats, 28/30 mm Width Across Corners, 0.2 mm Min. Armour Wire, 0.9 mm Max. Armour Wire, 21 N/m, IP66/68, Thermoplastic Elastomer Seal, Brass Body, Nickel Plated Finish, -20 to 95 deg C, 75 mm Length

Additional Information

Additional Information
Brand CCG
Range Name Type E1EX
Standard Pack Size 1
UNSPSC Class 39121400
UOM EA
Vendor Product 057100-16
Temperature -20 to 95 deg C
Please Note Supplied With Lock Nut & Thread Gasket
Torque Rating 21 N/m
Thread Size M16
Thread Length 15mm
IP Rating IP66/68
Finish Nickel Plated
Length 75 mm
Max. Armour Wire 0.9 mm
Body Material Brass
Min. Armour Wire 0.2 mm
Max. Sheath OD 10.5mm
Width Across Corners 28/30 mm
Width Across Flats 25/27 mm
Seal Material Thermoplastic Elastomer
Min. Sheath OD 5mm
Thread Pitch 1.5mm
