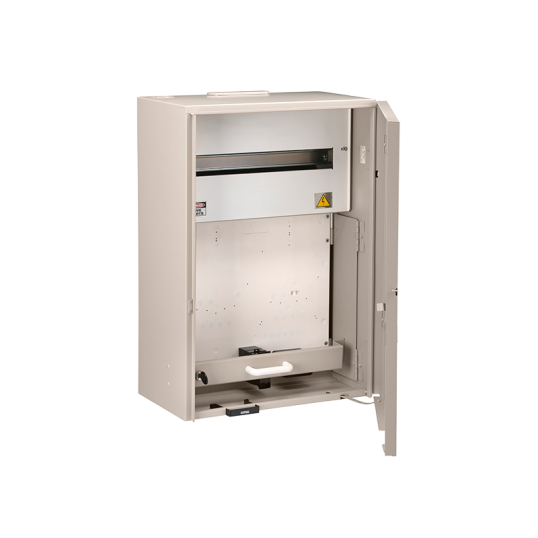

Clipsal ResiMax Meter Box With Service Fuse Lock Victoria W470mm H680mm D280mm Surface Mount Iron Galvanised IP23

Description

Meter Box With Service Fuse Lock Victoria, Service Facilities: 21 Module, 680mm Height, 470mm Width, 280mm Depth, 380mm Panel Height, 400mm Panel Width, Ventilated Removable Door, Padlock Lock, IP23, Cable Entry: Knock-Out Top and Bottom, Knock-Out Rear, Surface, Iron, Galvanised

Key Specifications

Barcode (EAN-13)	9311554757748
SKU	CLI230DRAVL
Brand	Clipsal
Range Name	Resi MAX
Product Type	Meter Boxes Domestic

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121100
UOM	EA
Vendor Product	230DRAVL
Enclosure Depth	280mm
Enclosure Width	470mm
Enclosure Height	680mm
Panel Height	380mm
Panel Width	400mm
Cable Entry	Knock-Out Top and Bottom/Knock-Out Rear
Lock Type	Padlock
Finish	Galvanised
Door Type	Ventilated Removable
Mounting Method	Surface
Material	Iron
Service Facilities	21 Module
IP Rating	IP23
