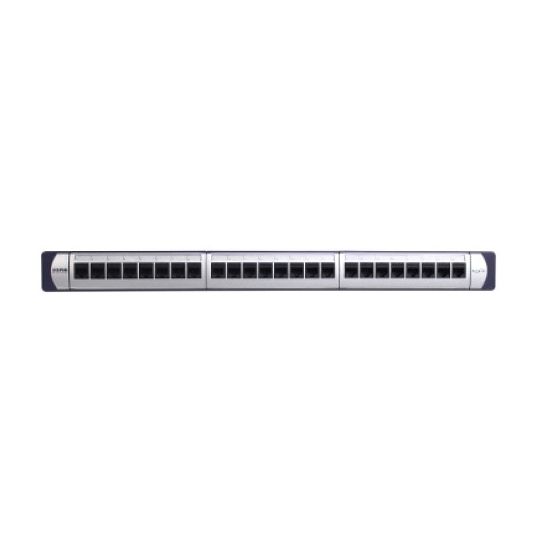

Clipsal Actassi Patch Panel Cat5e 1RU 24 Port Grey
Loading...
Description
Patch Panel Cat5e 1RU, 1.5 Amp, 24-23 AWG, RJ45, S-110 Keystone Connector, 20 mOhm Contact Resistance, >= 500 MOhm Insulation Resistance, 24 Ports, 4 Pairs, 1RU, Growth Configuration: Loaded, IDC Termination, 750 Cycles Durability, 1000 Volt Dielectric Strength, Flat Patch Panel, Cat5e U/UTP Cable, Wiring Scheme: TIA-568A/B, ABS + PC + Metal Housing, Grey (RAL 7040),-10 to 60 deg C, 44mm Height, 482mm Width, 124mm Depth
Key Specifications
| Barcode (EAN-13) |
3606489741266
|
|---|---|
| SKU |
CLIRJ5U24PPC
|
| Brand |
Clipsal
|
| Product Type |
Patch Panels Cat5e
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 43223300 |
| UOM | EA |
| Vendor Product | RJ5U24PPC |
| Cable Type | Cat5e U/UTP |
| Colour | Grey |
| Connector Type | RJ45/S-110 Keystone |
| Depth | 124mm |
| Height | 44mm |
| Growth Configuration | Loaded |
| Housing Material | ABS/PC/Metal |
| Panel Capacity | 24 Port |
| Patch Panel Style | Flat |
| Rack Units | 1RU |
| Wiring Scheme | TIA-568A/B |
| Width | 482mm |
