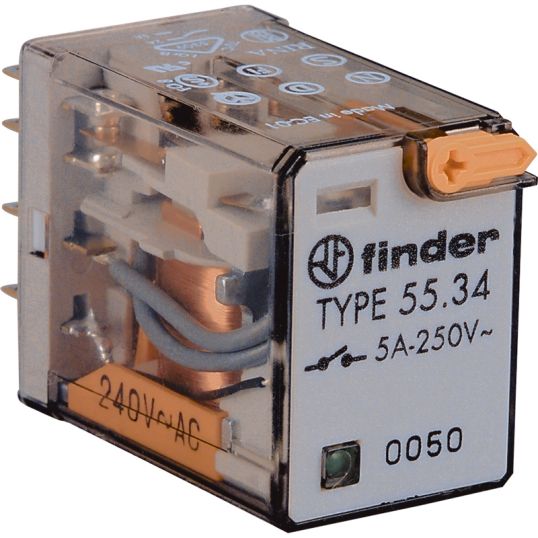

Finder Miniature General Purpose Relay Plug-In Mount 4P 4CO 7A 240V 14 Pin Flat

Description

Miniature General Purpose Relay, 250 Volt AC, 240 Volt AC Coil Voltage, 7 Amp, 0.125 kW, 14 Pin Flat, 4 Pole, 4 Changeover Configuration, 19100 Ohm, 3 ms Breaking/11 ms making Operating Time, 150000 Cycles, Plug-In Mounting, Silver Nickel (Ag/Ni) Contact, -40 to 85 deg C, 27.7 mm Height, 20.7 mm Width, 36.7 mm Depth, With PB plus/LED plus/Mechanical Indicator

Key Specifications

Barcode (EAN-13)	8012823120577
SKU	FID55.34.0054240VAC
Brand	Finder
Range Name	Series 55
Product Type	Power Relays

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Complete range from PCB to power relays to cover all of your switching requirements Compact construction allowing for most efficient use of space Lockable test button and mechanical flag indicator as standard on 2 and 4 pole types
Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	55340054240VAC
Contact Configuration	4 Changeover
Depth	36.7 mm
Height	27.7 mm
Current	7 Amp
Mounting Method	Plug-In
Contact Material	Silver Nickel (Ag/Ni)
Number Of Poles	4 Pole
Operating Coil Voltage	240 Volt AC
Operating Cycles	150000 Cycles
Pin Configuration	14 Pin Flat
Operating Time	3 ms Breaking/11 ms making
Please Note	With PB plus/LED plus/Mechanical Indicator
Power Rating	0.125 kW
Resistance	19100 Ohm
Temperature	-40 to 85 deg C
Voltage	250 Volt AC
Width	20.7 mm
