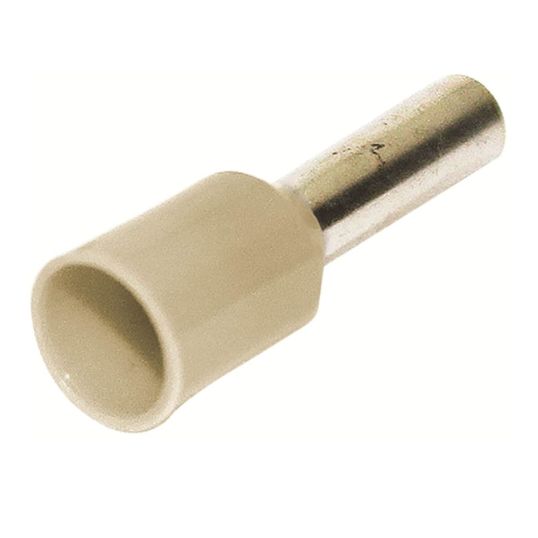

Hellermann Tyton Bootlace Ferrule Insulated Nylon Ivory 16mm
Loading...
Description
Insulated Bootlace Ferrule, 16 mm, 1 Conductors, 12 mm Pin Length, 5.8 mm Pin Diameter, 8.8 mm Collar Inside Diameter, 24 mm Overall Length, Electro Grade Copper Sleeve, Nylon Insulation, Ivory Insulation, Copper Contact, 105 deg C, 50 Pack
Key Specifications
| Barcode (EAN-13) |
9349519001070
|
|---|---|
| SKU |
HMYBL16
|
| Brand |
Hellermann Tyton
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 50 |
| UNSPSC Class | 39121400 |
| UOM | PK |
| Vendor Product | BL16 |
| Collar Inside Diameter | 8.8 mm |
| Conductor Size | 16 mm |
| Contact Material | Copper |
| Insulation Colour | Ivory |
| Insulation Material | Nylon |
| Overall Length | 24 mm |
| Number of Conductors | 1 |
| Pin Diameter | 5.8 mm |
| Pack Size | 50 Pack |
| Pin Length | 12 mm |
| Sleeve Material | Electro Grade Copper |
| Temperature | 105 deg C |
