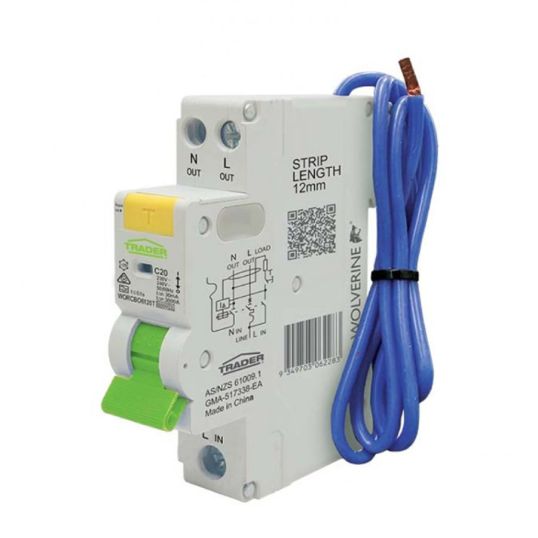

GSME Residual Current Breaker with Overcurrent Protection (RCBO) Type A 20Amp 4.5kA 30mA C Curve 1 + N Pole 1 Module

$GSME\GSME_WORCBO6120T.JPG$

Description

Residual Current Breaker with Overcurrent Protection (RCBO) Type A, 240 Volt, 20 Amp, 50/60 Hz, 4.5 kA Interrupt Capacity, 30 mA Trip Sensitivity, C Curve, 1 + N Pole, 1 Module, IP20, DIN Rail Mounting, 21 to 40 deg C

Key Specifications

Barcode (EAN-13)	9349703062283
SKU	GSMWORCBO6120T
Brand	GSME Trader
Range Name	Wolverine

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Earth leakage protection Overload and short circuit protection Non-Line/Load sensitive allows the electricians to either input from the top and output from the bottom or input from the bottom and output from the top without issue and this provides greater versatility and ease of installation Compact SLIM module design, allows for more RCDs/MCBs to be installed in the one enclosure True double pole disconnection in a single module RCBO Double pole switching for complete isolation of faulty circuits
Standard Pack Size	6
UNSPSC Class	39121600
UOM	EA
Vendor Product	WORCBO6120T
Current	20 Amp
Frequency	50/60 Hz
IP Rating	IP20
Interrupt Capacity	4.5 kA
Modules	1 Module
Mounting Method	DIN Rail
Number Of Poles	1 Pole
Temperature	21 to 40 deg C
Trip Characteristic	C Curve
Voltage	240 Volt
Trip Sensitivity	30 mA
