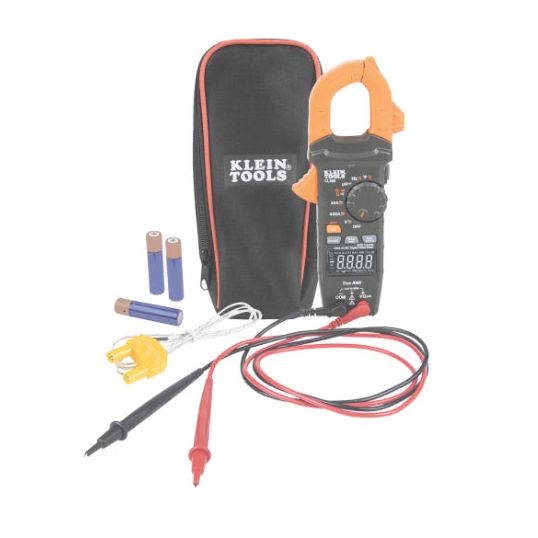

Klein Digital Clamp Meter AC/DC Auto-Ranging TRMS 400A

Description

Auto Ranging AC/DC Digital Clamp Meter, 600 Volt AC/DC, 400 Amp, 10 Hz/60 kHz for 8/220 Volt AC RMS, 40 MOhm, 3 x AAA, 4000 Count Reverse Contrast LCD Display, -40 to 1000 deg C, 21.5 cm Length x 8.9 cm Width x 3.8 cm Height

Key Specifications

Barcode (EAN-13)	092644692871
SKU	KLNA-CL390
Brand	Klein

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands-free operation Non-contact voltage tester integrated into the clamp jaw High-visibility reverse contrast LCD display for improved view ability in all ambient lighting conditions Automatically ranging true root mean squared (TRMS) measurement technology for accuracy Measures AC Current and NCVT via a clamp, as well as AC/DC voltage, resistance, frequency, DC micro-amp, capacitance, duty cycle, diode test and continuity via test-leads, and temperature with a thermocouple Measures temperature with a K-Type thermocouple probe Max/Min, Rel/Zero and Data Hold capability Auto Power-Off after 10 minutes to conserve battery life Low-battery indicator and easily accessible battery compartment Built to withstand a 6.6in(2 m) drop
Standard Pack Size	1
UNSPSC Class	41113600
UOM	EA
Vendor Product	A-CL390
Current	400 Amp
Dimensions	21.5 cm Length x 8.9 cm Width x 3.8 cm Height
Display Type	4000 Count Reverse Contrast LCD
Frequency	10 Hz/60 kHz for 8/220 Volt AC RMS
Power Supply	3 x AAA
Product Type	simple
Resistance	40 MOhm
Temperature	-40 to 1000 deg C
Voltage	600 Volt AC/DC
