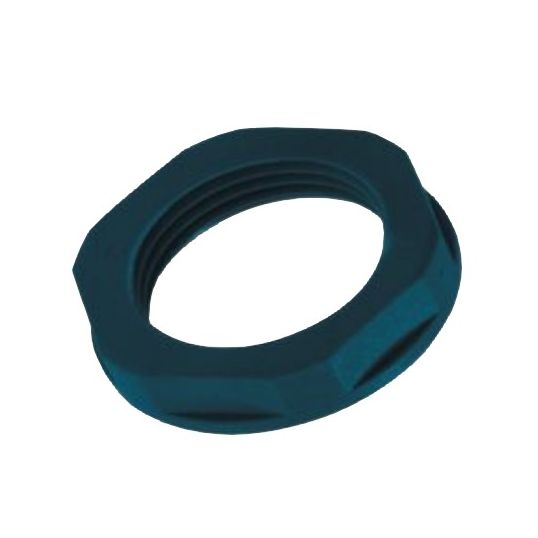

Lapp Kabel Cable Gland Locknut Hex M32 x 1.5 Glass Fiber-Reinforced Polyamide RAL 9005 Black

$Lapp_Kabel\Lapp_Kabel_SKINTOP_GMP_GL_M_Blk.jpg$

Description

Cable Gland Counter Nut Hexagonal, M32 x 1.5 mm, 1.5 mm, 41 mm Width Across Flats, 45.1 mm Width Across Corners, Glass Fibre Reinforced Polyamide Body, Black, -20 to 100 deg C/-40 to 100 deg C, 7 mm Depth

Key Specifications

SKU	LAP53119140
Brand	Lapp Kabel
Range Name	Skintop GMP-GL-M
Product Type	Gland Accessories

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Glass fibre-reinforced for maximum mechanical stability Supporting surface for spanner means scratches on the housing are avoided Good chemical resistance Assembly time Oil resistant Temperature resistant UV resistant
Standard Pack Size	100
UNSPSC Class	39121400
UOM	EA
Vendor Product	53119140
Body Material	Glass Fibre Reinforced Polyamide
Depth	7 mm
Finish	Black
Temperature	-20 to 100 deg C/-40 to 100 deg C
Width Across Corners	45.1 mm
Thread Size	M32 x 1.5 mm
Width Across Flats	41 mm
Thread Pitch	1.5 mm
