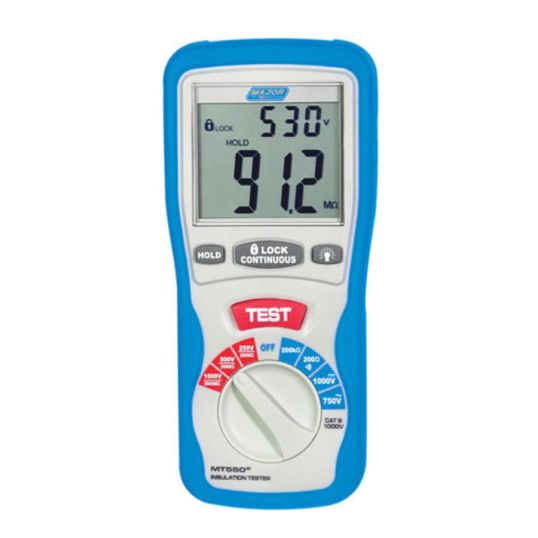

Major Tech Digital Insulation Tester 250/500/1000V ACV DCV

chevron-left
loader
Loading...

Description

chevron-down
Digitalinsulation Tester, DC: 0-1000 Volt, AC: 0-750 Volt, 200 Ohm - 200 kOhm Resistance, 6 x AA Battery, Dual LCD Display, Double Moulded Enclosure, 200mm x 92mm x 50mm, IEC 61010-1 CAT IV 600V

Key Specifications

chevron-down
Barcode (EAN-13)
6008229008023
SKU
MAJMT550
Brand
Major Tech

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • 3 test ranges 250V-500V-1000V
  • 750V AC voltage and 1000V DC voltage ranges
  • Live circuit warning and buzzer
  • Data Hold function
  • 1mA output current on insulation test
  • 200mA short circuit on continuity range
  • Continuity buzzer
  • Automatic discharge after test
  • Lock down test button for continuous use
  • Hands free strap and magnet supplied as standard accessories
Standard Pack Size 1
UNSPSC Class 41113600
UOM EA
Vendor Product MT550
Dimensions 200mm x 92mm x 50mm
Display Type Dual LCD
Power Supply 6 x AA
Product Type simple
Resistance 200 Ohm/200 kOhm
Voltage 0-1000 Volt DC/0-750 Volt AC
