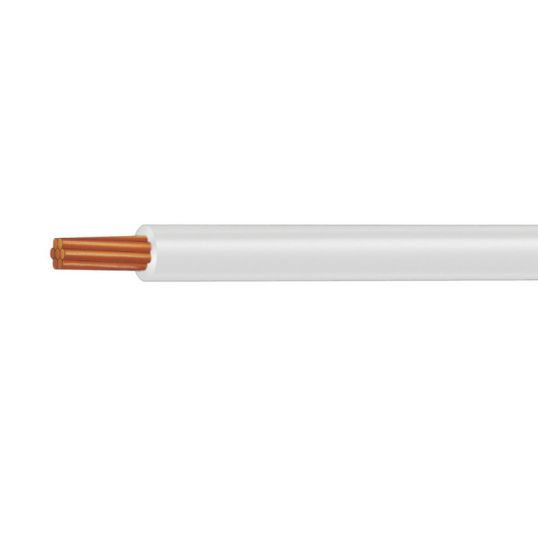

Olex 1mm Building Wire White 1mtr

Description

Building Wire, 1 mm, Copper, 0.6-1 kV, 1/1.35 mm Strands, 2.8 mm Overall Diameter, 1 mtr Length, 0.8 mm Insulation Thickness, 0.07 kN Pulling Tension, DC: 18.1 Ohm/km AC: 25.8 Ohm/km Conductor Resistance, 15 MOhm/km Insulation Resistance, V-90 PVC Insulation, White Insulation, 90 deg C, AS/NZS 1125 AS/NZS 5000.1

Key Specifications

Barcode (EAN-13)	9319215004927
SKU	OLX1/113BWWA1
Brand	Olex
Product Type	Building Wire

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121614
UOM	MTR
Vendor Product	BAAP02A1001AAWT
Conductor Resistance	DC: 18.1 Ohm/km AC: 25.8 Ohm/km
Conductor Size	1 mm
Conductor Type	Copper
Insulation Colour	White
Insulation Material	V-90 PVC
Insulation Resistance	15 MOhm/km
Insulation Thickness	0.8 mm
Overall Diameter	2.8 mm
Pulling Tension	0.07 kN
Standards	AS/NZS 1125 AS/NZS 5000.1
Stranding	1/1.35 mm
Temperature	90 deg C
Voltage	0.6-1 kV
