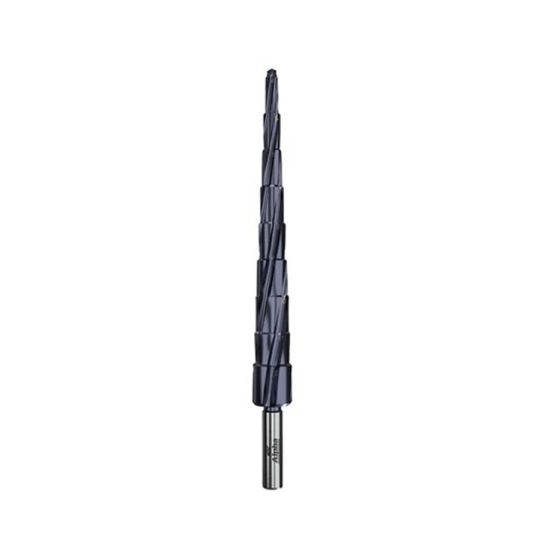

Sheffield Step Tip Cutter Drill Bit 4-12mm 126.32mm 3-Flat M2 HSS

chevron-left
loader
Loading...

Description

chevron-down
Yep, you read that right. Its a Step. Tip. Step. Cutter. But the name is just the beginning its performance is where the magic happens. Combining several tools into one, this step cutter will not only cut costs of buying multiple bits, but will significantly reduce work time. With the patented step tip design eliminating pre-drilling, the 10 mm deep steps allowing for drilling in thicker materials and AlCrN coating for tool bit durability and longevity, youare now saving money, time and a lot of onsite stress! Let the tool bit do all the work as the unique step tip design makes the initial hole, allowing the steps to then take charge and drill to the required bore size. The four high-performance edges cut with ease through the material, making the drilling easier than ever before.

Key Specifications

chevron-down
Barcode (EAN-13)
9313601026555
SKU
SHF9STM4-12DSD
Brand
Sheffield
Range Name
Alpha

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • 10 mm Cutting depth - Suitable for thicker workpieces up to 10 mm, unlikeconventional step drills which are limited to 4 mm
  • Fast drilling process - The overall drill time is 6x faster than regular step drillsthanks to four high-performance cutting edges
  • No pre-drilling needed - patented step tip design eliminates the need to pre-drilla pilot hole
  • Deburring eliminated - the next larger step diameter performs the function ofdeburring while drilling
  • Less tool wear - premium AlCrN multi-layer protection coating ensuresdurability and tool longevity
  • Ideal for steel, wood, plastic and stainless steel
Standard Pack Size 1
UNSPSC Class 23241600
UOM EA
Vendor Product 9STM4-12DSD
Cutting Depth 10 mm
Bit Size 4-12 mm
Finish AlCrN
Flute Type Spiral
Material M2 High Speed Steel
Overall Length 126.32 mm
Please Note 9 Step
Point Type 135 deg Split
Shank Size 1/4 inch
Shank Type 3-Flat / Non-Slip
