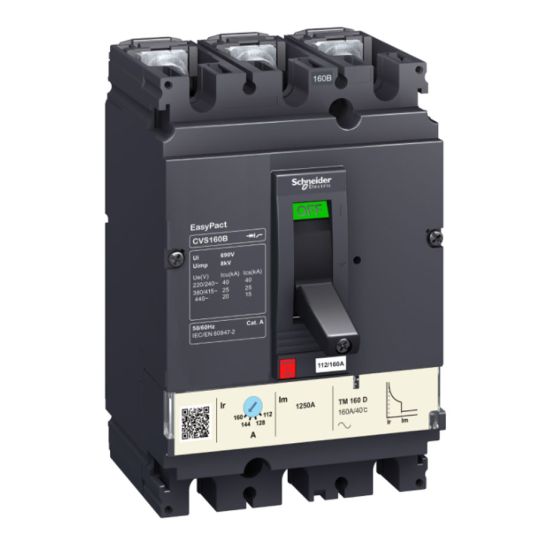

Schneider EasyPact CVS160B MCCB 25kA 3 Pole 160A Thermal-Magnetic
Loading...
Description
Moulded Case Circuit Breaker, 415 Volt AC, 160 Amp, 50/ 60 Hz, 25 kA Interrupt Capacity, 3 Pole, Thermal Magnetic, Screw Terminal, IP40,-25 to 70 deg C, 105mm Width x 161mm Height x 86mm Depth
Key Specifications
| SKU |
SHNLV516303
|
|---|---|
| Brand |
Schneider
|
| Range Name |
EasyPact CVS
|
| Product Type |
MCCBs
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | LV516303 |
| Current | 160 Amp |
| Frequency | 50/ 60 Hz |
| Interrupt Capacity | 25 kA |
| IP Rating | IP40 |
| Number Of Poles | 3 Pole |
| Temperature | -25 to 70 deg C |
| Terminal Type | Screw |
| Trip Type | Thermal Magnetic |
| Voltage | 415 Volt |
