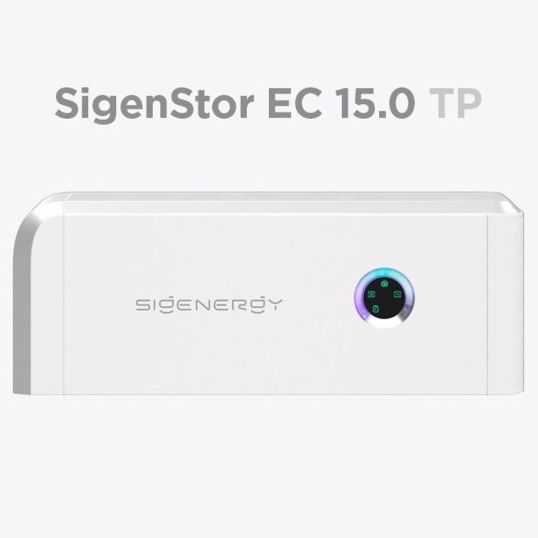

Sigen Energy Controller 15.0 kW Three Phase for AU

$Sigenergy\Sigenergy_11010046.JPG$

Description

SKU	SIG11010046
Brand	Sigenergy

Looking for something specific? Search with keywords to help filter your required specifications.

Features	EMS inside for precise control On and off-grid compatibility Up to 4 MPP. Trackers DC/AC ratio up to 2 Multi-source black start IP66 system protection rating
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	11010046
AC Max. Apparent Power	15000 VA
AC Nominal Voltage	380 / 400 Volt
AC Operating Frequency	50/60 Hz
AC Output Current	21.7 Amp
AC Output Power	15000 Watt
Communication Port	WLAN / Fast Ethernet / RS485 / Sigen CommMod (4G/3G/2G)
Battery	SigenStor BAT 5.0 / 8.0 Voltage: 600-900 Volt
Cooling Method	Smart Air Cooling
DC Input Power	24000 Watt
DC Max. Input Current	16 Amp
DC Input Voltage	1100 Volt
DC MPPT Voltage Range	160-1000 Volt
DC Nominal Voltage	600 Volt
Depth	260 mm
DC Start-up Voltage	180 Volt
Efficiency	98.30%
European Weighted Efficiency	97.90%
IP Rating	IP66
Height	300 mm
Max. Operating Altitude	4000 mtr
Number of MPPTs	3
Operating Temperature	-30 to 60 deg C
Phase	3 Phase
Power Factor	0.8 Leading-0.8 Lagging
Relative Humidity	0-95%
Total Harmonic Distortion	<2%
Width	700 mm
