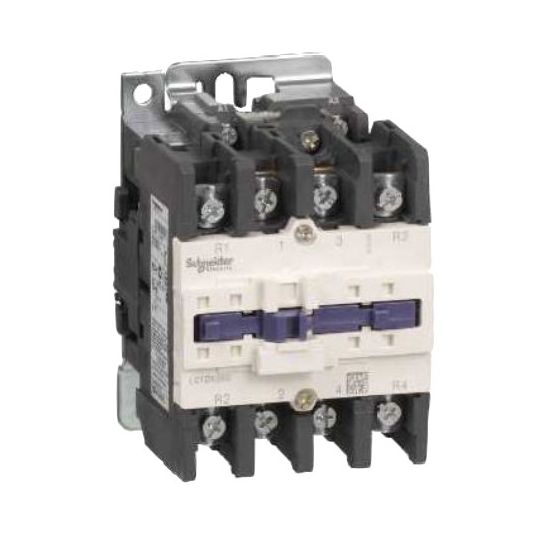

Schneider Contactor General Purpose AC Operated 4 Pole 80A AC3 125A AC1 415V DIN Rail/Plate Mount

Description

Contactor General Purpose AC Operated, 415 Volt AC, AC3 Rating (Amps): 80, AC1 Rating (Amps): 125 at 440 Volt AC, 690 Volt AC, 300 Volt DC, 4 Pole, Operating Time: 20-35 ms Closing, 6-20 ms Opening, Screw Clamp, DIN Rail Mount or Base/Plate, IP20, -40 to 60 deg C, 127 mm Height, 96 mm Width, 125 mm Depth

Key Specifications

Barcode (EAN-13)	3389110074437
SKU	TEELC1-D80004N5
Brand	Schneider
Range Name	TeSys Model D
Product Type	Contactors General

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	LC1D80004N5
AC1 Rating (Amps)	125 Amp AC1
AC3 Rating (Amps)	80 Amp AC3
Contact Voltage	690 Volt AC/300 Volt DC
Depth	125 mm
Height	127 mm
IP Rating	IP20
Mounting Method	DIN Rail/Base/Plate
Number Of Poles	4 Pole
Operating Coil Voltage	415 Volt AC
Operating Time	20-35 ms Closing/6-20 ms Opening
Temperature	-40 to 60 deg C
Terminal Connection	Screw Clamp
Width	96 mm
