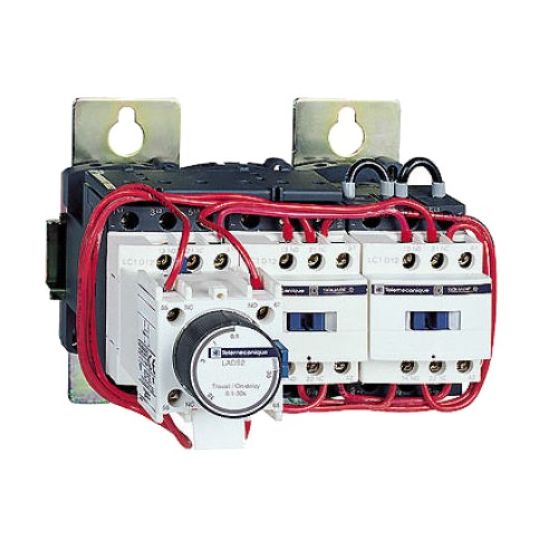

Schneider Motor Starter Star Delta 7.5/11kW 24V Open Unenclosed IP20

Description

Motor Starter Star Delta, 690 Volt AC, 12 Amp, 50/60 Hz, 7.5 to 11 kW, 5.5 kW @ 220/230 Volt AC, 11 kW @ 380/400/415 Volt AC, 24 Volt AC, 3 x 3P Poles, 30 sec, Screw,3 x 1NO + 1NC, Open Unenclosed, IP20, 15 M Cycles Mechanical, 2 M Cycles Electrical, -40 to 70 deg C, 124 mm Height x 143 mm Width x 143 mm Depth, Overload Purchased Separately

Key Specifications

Barcode (EAN-13)	3389110545630
SKU	TEELC3-D12AB7
Brand	Schneider
Range Name	TeSys Model D
Product Type	Motor Starters Star Delta

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	LC3D12AB7
Auxiliary Contact Rating	3 x 1 Normally Opened & 1 Normally Closed
Coil Voltage	24 Volt AC
Connection Type	Screw
Current	12 Amp
Depth	143 mm
Enclosure Type	Open Unenclosed
Frequency	50/60 Hz
Height	124 mm
IP Rating	IP20
Motor Power	5.5 kW @ 220-230 Volt AC/11 kW @ 380-400-415 Volt AC
Operating Cycles	15 M Cycles Mechanical/2 M Cycles Electrical
Operating Temperature	-40 to 70 deg C
Please Note	Overload Purchased Separately
Timing	30 sec
Voltage	690 Volt AC
Wattage	7.5-11 kW
Width	143 mm
