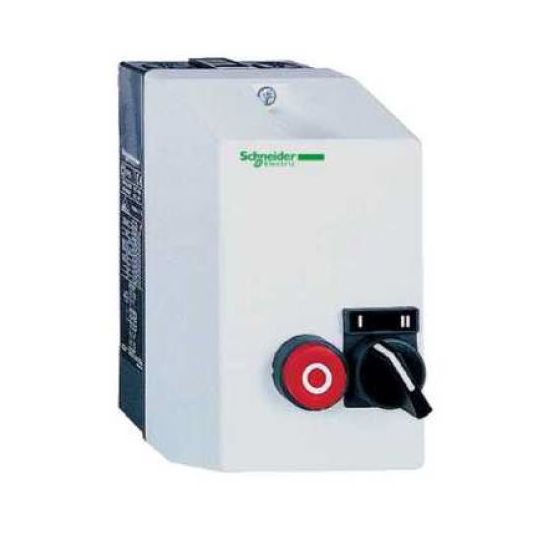

Schneider Motor Starter Reversing 5.5kW 415V Polycarbonate IP65

Description

Motor Starter Reversing, 660/690 Volt AC, 12 Amp, 50/60 Hz, 5.5 kW, 3 kW at 220/230 Volt AC, 7.5 kW at 500/660/690 Volt AC, 415 Volt AC, Push-Button Stop/Reset Red O, Selector Switch 2 Positions Start I-II, IP65, Polycarbonate, -5 to 40 deg C, 201 mm Height x 101 mm Width x 160 mm Depth, Overload Purchased Separately

Key Specifications

Barcode (EAN-13)	3389110633634
SKU	TEELE2-D12N7
Brand	Schneider
Range Name	TeSys Model D
Product Type	Motor Starters Reversing

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	LE2D12N7
Coil Voltage	415 Volt AC
Control Type	Pushbutton Stop-Reset Red O/Selector Switch 2 Positions Start I-II
Current	12 Amp
Depth	160 mm
Frequency	50/60 Hz
Height	201 mm
IP Rating	IP65
Motor Power	3 kW @ 220-230 Volt AC/7.5 kW @ 500-660-690 Volt AC
Operating Temperature	-5 to 40 deg C
Please Note	Overload Purchased Separately
Voltage	660-690 Volt AC
Wattage	5.5 kW
Width	101 mm
