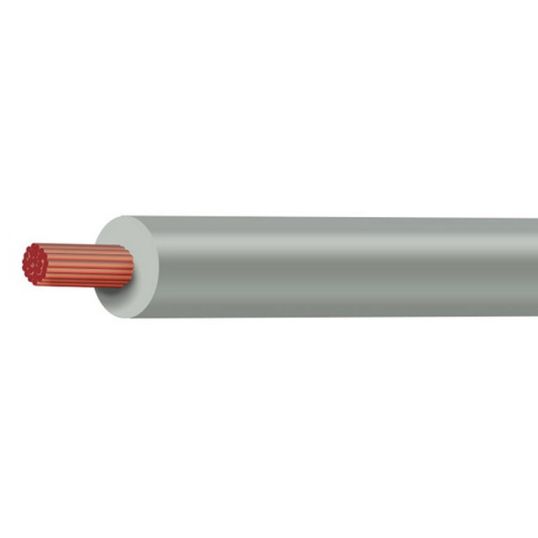

Tycab 0.5mm Building Wire Grey 1000mtr
Loading...
Description
Building Wire, Single Insulated, 1 Core, 0.5 mm, Plain Copper, 0.6/1 kV, 1/0.8 mm Strands, 2.4 mm Overall Diameter, 0.8 mm Insulation Thickness, Conductor Resistance: 36 Ohm/km, V-90HT PVC Insulation, Unsheathed, Grey Insulation, AS/NZS 5000.1
Key Specifications
| Barcode (EAN-13) |
9320943009597
|
|---|---|
| SKU |
TYCBVD1108-SY-1000
|
| Brand |
Tycab
|
| Product Type |
Building Wire
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1000 |
|---|---|
| UNSPSC Class | 26121500 |
| UOM | MTR |
| Vendor Product | BVD1108-SY-1000 |
| Conductor Resistance | 36 Ohm/km |
| Conductor Size | 0.5 mm |
| Conductor Type | Copper |
| Insulation Colour | Grey |
| Insulation Material | V-90HT PVC |
| Insulation Thickness | 0.8 mm |
| Overall Diameter | 2.4 mm |
| Standards | AS/NZS 5000.1 |
| Stranding | 1/0.8 mm |
| Voltage | 0.6-1 kV |
Downloads
