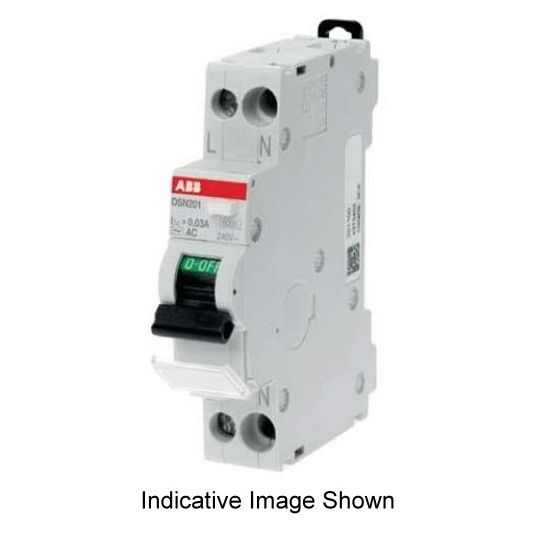

ABB Combination RCD Circuit Breaker RCBO 1P+N 25 Amp 230-240V AC 6 kA DIN Rail

Description

Combination RCD Circuit Breaker RCBO, 25 Amp, 230-240 Volt AC, 50/60 Hz, Interrupt Capacity: 6 kA, Trip Sensitivity: 30 mA, Number of Poles: 1P + N, 16 mm Flexible/Rigid Terminal Connection, IP2X, DIN Rail,-25 to 55 deg C, 0.085 m Height, 0.018 m Width, 0.067 m Depth

Key Specifications

SKU	ABBDSN201C25
Brand	ABB
Range Name	DS201
Product Type	Combination RCBO

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	DSN201C25-NLA
Current	25 Amp
Height	0.085 mtr
Depth	0.067 mtr
Frequency	50/60 Hz
Interrupt Capacity	6 kA
Mounting Method	DIN Rail
IP Rating	IP2X
Number Of Poles	1 Pole
Temperature	-25 to 55 deg C
Terminal Connection	16 sq-mm Flexible/Rigid
Trip Sensitivity	30 mA
Voltage	230-240 Volt
Width	0.018 mtr
