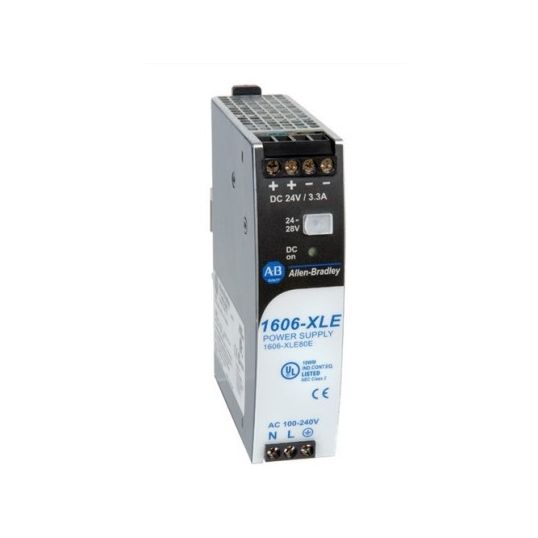

Allen-Bradley Switch mode Power Supply 1Ph In 100-240V/110-150VDC Out 24.1VDC 80W 3.3A DIN 35 Rail Mount

Description

Switch Mode Power Supply, In: 100-240 Volt AC, 110-150 Volt DC, Out: 24.1 Volt DC, 3.3 Amp, 80 Watt, 50/60 Hz, 1 Phase, Mounting Method: DIN 35 Rail, Display: LED, IP20, Efficiency: 90%, -25 to 70 deg C, 124 mm Height, 32 mm Width, 102 mm Depth

Key Specifications

Barcode (EAN-13)	10662074643865
SKU	ALB1606XLE80E
Brand	Allen-Bradley
Product Type	Power Supplies

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Efficient power supplies which minimise heat output and reduce associated running costs Redundancy module options allow for backup power in critical applications The compact footprint maximises usable space with the panel
Standard Pack Size	1
UNSPSC Class	39121000
UOM	EA
Vendor Product	1606XLE80E
Current	3.3 Amp
Depth	102 mm
Display	LED
Efficiency	90%
Height	124 mm
Frequency	50/60 Hz
Input Voltage	100-240 Volt AC/110-150 Volt DC
IP Rating	IP20
Output Rating	80 Watt
Mounting Method	DIN Rail
Output Voltage	24.1 Volt DC
Phase	1 Phase
Temperature	-25 to 70 deg C
Width	32 mm
