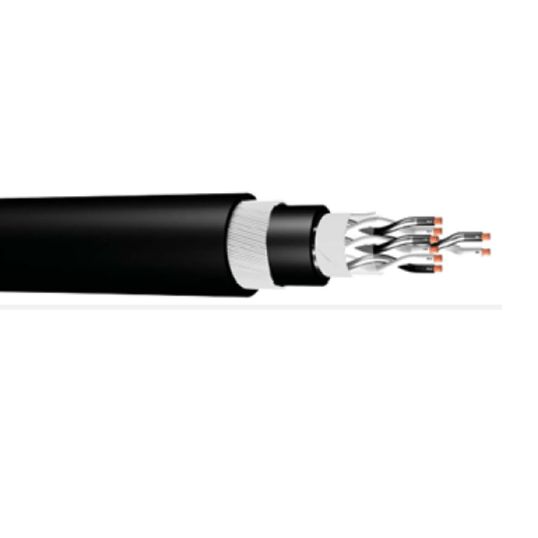

APEC Instrumentation Cable Armoured 24 Pair Overall Screened 0.5mm 110/150V PVC/SWA/PVC Black

$APEC\APEC_INSVOS.jpg$

Description

Instrumentation Cable Armoured, 0.5 mm, Annealed Copper, 110-150 Volt, 24 Pair, 7/0.3 mm Strands, Overall Screened Screen, 25 mm Overall Diameter, 0.4 mm Insulation Thickness, Steel Wire Armour, Black/White Numerals Core, V-90 PVC Insulation, 5V-90 PVC Sheath, Black Sheath, UL 2464 AS 1125

Key Specifications

Barcode (EAN-13)	932666301772
SKU	APEINSVOS005P24B
Brand	APEC
Product Type	Instrument Cable Armoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	INSVOS005P24B
Armour Material	Steel Wire
Core Colours	Black/White Numerals
Insulation Material	V-90 PVC
Insulation Thickness	0.4 mm
Conductor Size	0.5 mm
Number of Pairs	24 Pair
Conductor Type	Annealed Copper
Overall Diameter	25 mm
Sheath Colour	Black
Screen Format	Overall Screened
Sheath Material	5V-90 PVC
Standards	UL 2464 AS 1125
Stranding	7/0.3 mm
Voltage	110-150 Volt
