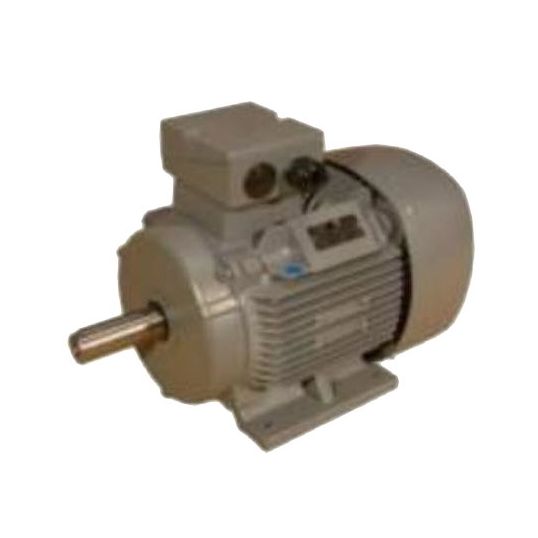

Invertek Electric Motor Squirrel Cage Induction 4P 7.5HP 3Ph 240D/415YV 132S Frame Foot Mount
Loading...
Description
Electric Motor Squirrel Cage Induction, 240 D/415 Y Volt AC, 10.2 Amp, 7.5 HP, 50 Hz, 3 Phase, 2900 rpm, 4 Pole, IP55, Frame: 132S, Shaft Size: 38 mm, Anti-Clockwise Rotation, Duty Cycle: S1, Torque: 2.2 Tn, Foot Mount, Insulation Class: Class F, 40 deg C, Aluminium Alloy, 437 mm Length x 252 mm Width x 318 mm Height
Key Specifications
| SKU |
INVM34005503IMA
|
|---|---|
| Brand |
Invertek
|
| Product Type |
Motors SCIM
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 26101100 |
| UOM | EA |
| Vendor Product | M34005503IMA |
| Current | 10.2 Amp |
| Frame | Size 132S |
| Frequency | 50 Hz |
| Height | 318 mm |
| Horsepower | 7.5 kW |
| Insulation Class | Class F |
| Material | Aluminium Alloy |
| Mounting Method | Foot |
| Number Of Poles | 4 Pole |
| IP Rating | IP55 |
| Phase | 3 Phase |
| Rotation | Anti-Clockwise |
| Shaft Size | 38 mm |
| Torque Rating | 2.2 Tn |
| Speed | 2900 rpm |
| Temperature | 40 deg C |
| Voltage | 240D-415Y Volt AC |
| Width | 252 mm |
