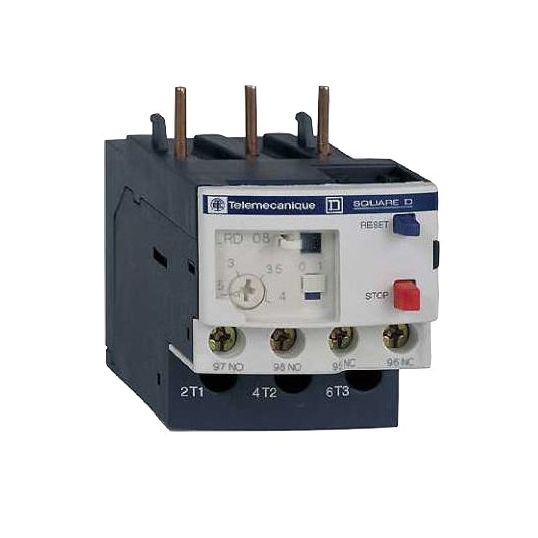

Schneider Thermal Overload Relay DIN Rail/Plate Mount 3 Pole 2.5-4A 690V 1NO-1NC Class 10A Blue Pushbutton IP20

$Schneider\Schneider_LRD_08.jpg$

Description

Thermal Overload Relay, 690 Volt Operational Voltage, Setting Range From (Amp): 2.5, Setting Range To (Amp): 4.0, 0-400 Hz, Class 10A, Red Pushbutton Stop/Blue Pushbutton Reset Control, 1 Normally Opened/1 Normally Closed Configuration, 3 Pole, 1.7 Nm Tightening Torque, DIN Rail/Plate Mounting, Screw/Clamp Terminal, For Use With LC1D09 to LC1D38 Contactors, IP20, -20 to 60 deg C, 66 mm Height, 45 mm Width, 70 mm Depth, 2 Phase

Key Specifications

Barcode (EAN-13)	3389110346787
SKU	TEELRD-08
Brand	Schneider
Range Name	TeSys Model D
Product Type	Contactor Overloads

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	LRD08
Contact Configuration	1 Normally Opened & 1 Normally Closed
Control Type	Red Pushbutton Stop/Blue Pushbutton Reset
Depth	70 mm
For Use With	LC1D09 to LC1D38 Contactors
Height	66 mm
Frequency	0-400 Hz
Mounting Method	DIN Rail/Plate
IP Rating	IP20
Number Of Poles	3 Pole
Please Note	2 Phase
Operational Voltage	690 Volt
Setting Range From (Amp)	2.5
Setting Range To (Amp)	4.0
Temperature	-20 to 60 deg C
Tightening Torque	1.7 Nm
Terminal Connection	Screw/Clamp
Trip Characteristic	Class 10A
Width	45 mm
