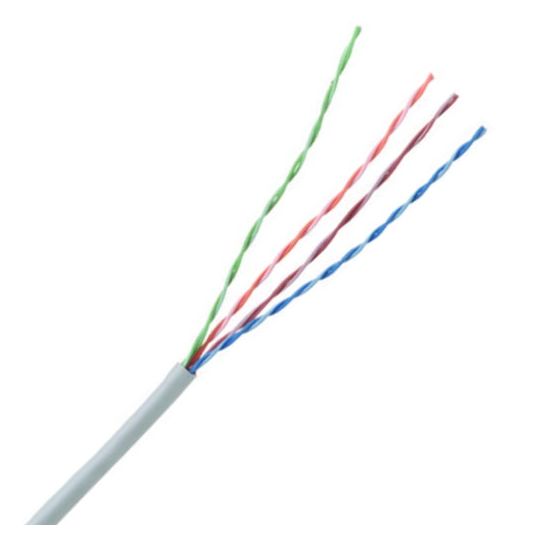

Belden 1583A U/UTP Data Cable Cat5e Multi-Conductor 4 Pair Non-Bonded 24AWG Polyolefin/PVC Red 1000M

$Belden\Belden_BEL1583A.jpg$

Description

U/UTP Data Cable Cat5e 4 Pair Non-Bonded, 300 Volt RMS, 24 AWG, 200 MHz Bandwidth, 9.38 Ohm/100 mtr at 20 deg C Conductor Resistance, Cat5e U/UTP-Unshielded Cable, 4 Pair, Bend Radius: Installation: 48.260mm, 155.687 N Max. Pulling Force, Solid Bare Copper Conductor, Rip Cord Filler, Polyolefin Insulation, PVC Sheath, Red Sheath,-20 to 60 deg C, 1000 mtr Length, 4.826mm Outside Diameter

Key Specifications

SKU	BEL1583A002RED
Brand	Belden
Product Type	CAT 5E Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	305
UNSPSC Class	43223300
UOM	MTR
Vendor Product	1583A-0021000
Bend Radius	Installation: 48.260 mm
Cable Type	Cat5e U/UTP-Unshielded
Conductor Material	Solid Bare Copper
Conductor Resistance	9.38 Ohm/100 mtr at 20 deg C
Conductor Size	24 AWG
Filler Material	Rip Cord
Frequency Bandwidth	200 MHz
Insulation Material	Polyolefin
Max. Pulling Force	155.687 N
Outside Diameter	4.826 mm
Pair Count	4 Pair
Sheath Colour	Red
Sheath Material	PVC
Temperature	-20 to 60 deg C
Voltage	300 Volt
