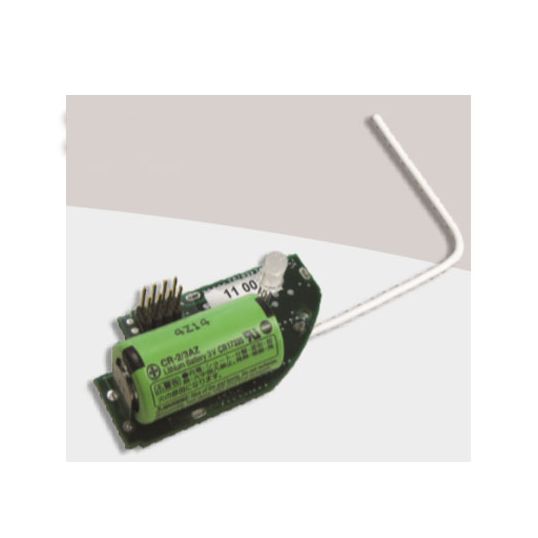

Brooks Radiolink Module 3 VDC 60mm x30mm x 20mm For 650 Series Alarm Lithium

Description

The module simply plugs into the designated slot in the base of the Alarm head. The immediate flashing LEDs indicates that the module has been fitted correctly. The EIB600MRF module facilitates wireless interconnection with up to 12 RadioLINK devices.

Key Specifications

Barcode (EAN-13)	9317537000429
SKU	BROEIB600MRF
Brand	Brooks
Range Name	650 Series
Product Type	Radiolinks

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	RF upgrade for EIB650 compatible series alarms Simple plug-in modular design Interconnect up to 12 RadioLINK Alarms Transmits, receives and repeats RF specific data Multi-path communication protocol Unique House Coding confines communication to selected RadioLINK devices RF Monitoring Powered through primary 10-Years lithium battery
Standard Pack Size	30
UNSPSC Class	46191500
UOM	EA
Vendor Product	EIB600MRF
Battery Type	Lithium Batteries
Coverage	Up to 12 Devices
Dimensions	60 mm x 30 mm x 20 mm
Frequency	926 MHz
Humidity	15-95% RH
Temperature	0 to 40 deg C
Voltage	3 Volt DC
