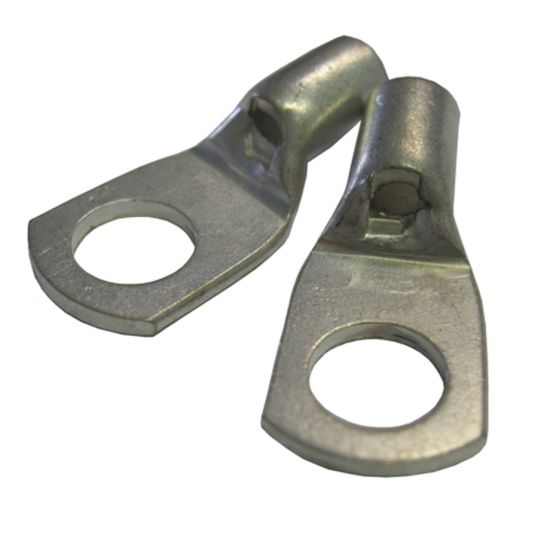

Alco Terminal Lug Standard Non-Insulated with Inspection Hole Copper 10mm M12 Stud 35mm OAL

Description

Non-Insulated Crimp Lug, 10 mm, M12 Stud, Standard Barrel Type, 11 mm Barrel Length, 35 mm Overall Length, 1 Hole, 4.5 mm Inside Diameter, 6.9 mm Outside Diameter, 20 mm Lug Width, 17 mm Lug Length, Copper Body, Copper, Tin Electroplated, -55 to 155 deg C

Key Specifications

Barcode (EAN-13)	9328587015783
SKU	ALCL10M12/25
Brand	Alco

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Non-insulated electro grade copper crimp lugs suitable for stranded to fine - stranded copper cable Electro tinned finish for corrosion resistance 99.9% copper for high conductivity Includes inspection port Conform to Australian Standards Independently tested and complies to Australian Standard AS4325.1 cl7 (10-400 sq-mm )
Standard Pack Size	25
UNSPSC Class	39121400
UOM	EA
Vendor Product	ALCL10M12/25
Barrel Length	11 mm
Barrel Type	Standard
Body Material	Copper
Conductive Material	Copper
Conductor Size	10 mm
Finish	Tin Electroplated
Inside Diameter	4.5 mm
Lug Length	17 mm
Lug Width	20 mm
Number of Holes	1
Outside Diameter	6.9 mm
Overall Length	35 mm
Stud Size	M12
Temperature	-55 to 155 deg C
