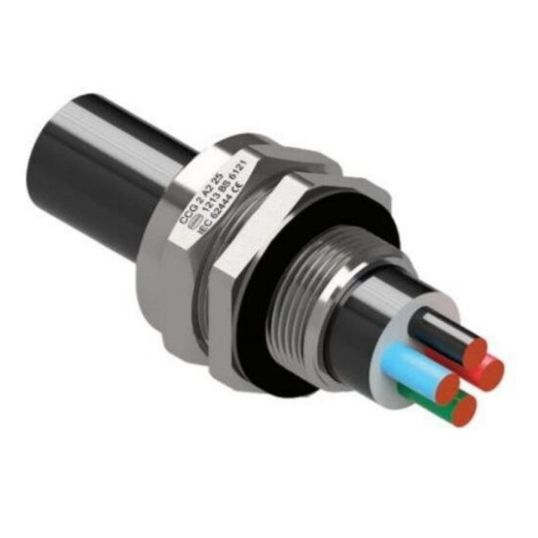

CCG Single Compression Cable Gland M50 x 1.5 34-44.5mm IP66/68

$CCG\CCG_053505-EMC.JPG$

Description

Single Compression Cable Gland EMC, M50, 15 mm Thread Length, 1.5 mm, 34 mm Min. Sheath OD, 44.5 mm Max. Sheath OD, 65 mm Width Across Flats, 73 mm Width Across Corners, 82.5 Nm Torque Rating, IP66/68, Brass Body, Thermoplastic Elastomer/Silicone Seal, Nickel Plated, -20 to 125 deg C, 57 mm Length

Key Specifications

SKU	CCG053505-EMC
Brand	CCG

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	For indoor and outdoor use Seals the cable sheath to IP66/68 Specially formulated elastomeric seals Provides 360 deg earthling to braid Precision manufactured from high quality brass Complete with heavy duty locknut and thread sealing gasket For braided cable
Standard Pack Size	2
UNSPSC Class	39121400
UOM	EA
Vendor Product	053505-EMC
Body Material	Brass
Finish	Nickel Plated
IP Rating	IP66/68
Max. Sheath OD	44.5 mm
Min. Sheath OD	34 mm
Seal Material	Thermoplastic Elastomer/Silicone
Thread Pitch	1.5 mm
Thread Length	15 mm
Temperature	-20 to 125 deg C
Thread Size	M50
Torque Rating	82.5 Nm
Width Across Flats	65 mm
Width Across Corners	73 mm
