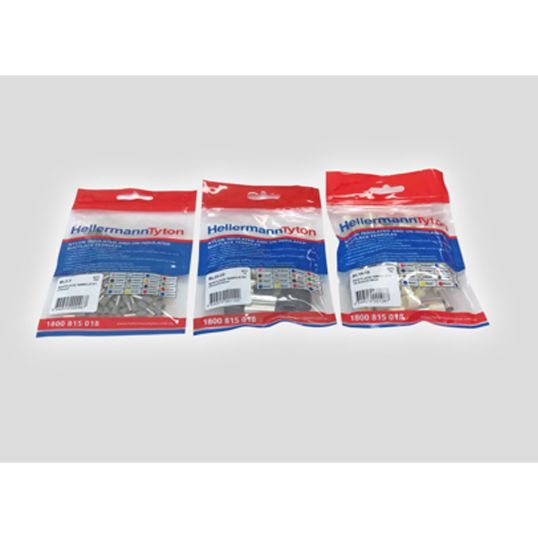

Hellermann Tyton Butt Splice Insulated Single Grip Blue 1.5-2.5mm 100/Pack
Loading...
Description
Butt Splice Insulated Single Grip, 1.5-2.5 mm, 1 Conductors, 600 Volt, 27 Amp, Single Grip Terminal, Electrolytic Copper Body, Copper, PVC Insulation, Blue Insulation, Tin Electroplated, 75 deg C, 6.2 mm Wire Strip Length, 4.5 mm Diameter, 6.2 mm Height, 26 mm Width, 100 Pack
Key Specifications
| Barcode (EAN-13) |
9349519008239
|
|---|---|
| SKU |
HMY2UT
|
| Brand |
Hellermann Tyton
|
| Product Type |
Splice & Bullet Connectors
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 100 |
| UNSPSC Class | 39121400 |
| UOM | PK |
| Vendor Product | 2UT |
| Body Material | Electrolytic Copper |
| Conductive Material | Copper |
| Conductor Size | 1.5-2.5mm |
| Current Rating | 27 Amp |
| Diameter | 4.5 mm |
| Finish | Tin Electroplated |
| Height | 6.2 mm |
| Insulation Material | PVC |
| Insulation Colour | Blue |
| Pack Size | 100 Pack |
| Number of Conductors | 1 |
| Temperature | 75 deg C |
| Terminal Type | Single Grip |
| Voltage Rating | 600 Volt |
| Width | 26 mm |
| Wire Strip Length | 6.2 mm |
