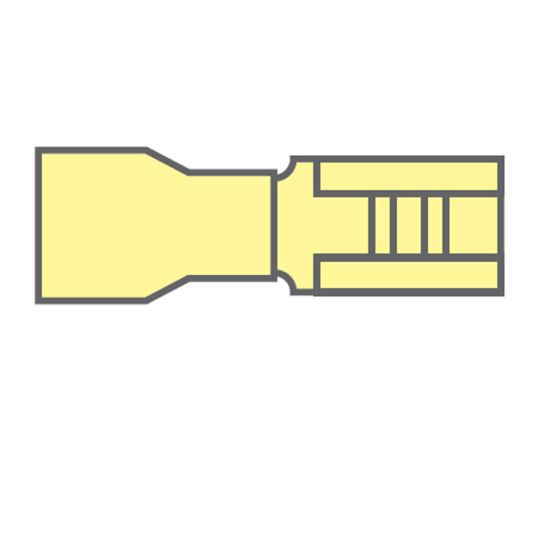

Hellermann Tyton Quick Connect Female Funnel Entry Fully Insulated Double Grip Yellow 4-6mm 6.4x0.8mm 50/Pack
Loading...
Description
QC Terminal Female Funnel Entry Fully Insulated Double Grip, 4-6 mm, 300 Volt, 6.4 x 0.8 mm Tab Size, 6-7 mm Wire Strip Length, Brass Base Material, Brass, Nylon Insulation, Yellow Insulation, 105 deg C, 26 mm Length, 6.7 mm Width, 6.6 mm Height, 50 Pack
Key Specifications
| Barcode (EAN-13) |
9349519000622
|
|---|---|
| SKU |
HMYQDF5-6F
|
| Brand |
Hellermann Tyton
|
| Product Type |
Quick Connect Terminals
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 50 |
| UNSPSC Class | 39121400 |
| UOM | PK |
| Vendor Product | QDF5-6F |
| Base Material | Brass |
| Conductive Material | Brass |
| Conductor Size | 4.0-6.0mm |
| Height | 6.6 mm |
| Insulation Colour | Yellow |
| Insulation Material | Nylon |
| Pack Size | 50 Pack |
| Tab Size | 6.4 x 0.8 mm |
| Temperature | 105 deg C |
| Voltage Rating | 300 Volt |
| Width | 6.7 mm |
| Wire Strip Length | 6-7 mm |
