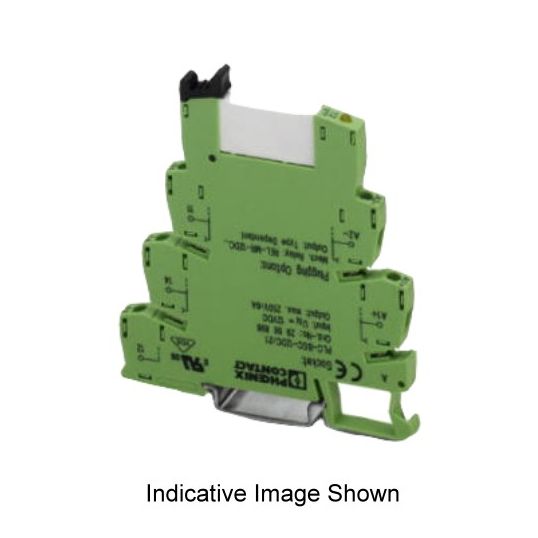

Phoenix Contact Relay Interface Base Terminal 24VDC

$Phoenix_Contact\Phoenix_Contact_2966171_6184.jpg$

Description

Relay Interface Base, 24 Volt DC, 250 Volt AC/DC Coil Voltage, 140 Watt, 1 Pole, SPDT Configuration, 5 ms Operate/8 ms Release Operating Time, Screw Terminal, DIN Rail/Channel Mounting, AgSnO Contact, -40 to 70 deg C, 80 mm Height, 6.2 mm Width, 94 mm Depth

Key Specifications

SKU	PHO2966171
Brand	Phoenix Contact

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	PLC-INTERFACE, consisting of basic terminal block PLC-BSC-/21 with screw connection and plug-in miniature relay with power contact, for assembly on DIN rail NS 35/7,5, 1 changeover contact, input voltage 24 V DC
Standard Pack Size	10
UNSPSC Class	39122300
UOM	EA
Vendor Product	2966171
Contact Configuration	SPDT
Contact Material	AgSnO
Depth	94 mm
Height	80 mm
Number Of Poles	1 Pole
Mounting Method	DIN Rail/Channel
Operating Coil Voltage	250 Volt AC/DC
Operating Time	5 ms Operate/8 ms Release
Power Rating	140 Watt
Temperature	-40 to 70 deg C
Terminal Type	Screw
Width	6.2 mm
Voltage	24 Volt DC
