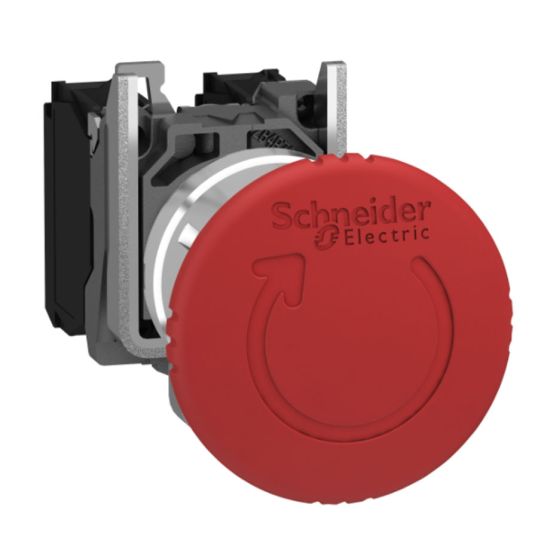

Schneider Harmony XB4 Emergency Stop Mushroom Pushbutton Trigger Latching Turn To Release 600V 10A 1NC Chrome 22x40mm Re

Description

Emergency Stop Pushbutton, 600 Volt, 10 Amp, Mushroom Actuator Head, 1 Normally Closed Configuration, Turn To Release Reset Method, Trigger Action and Mechanical Latching Operator, Trigger Operator Action, 300000 Cycles, 0.8-1.2 Nm Tightening Torque, Screw Clamp/Plug-in/Printed Circuit Board/Faston Terminal, Built In Mounting, 22.5 mm Mounting Hole Diameter, IP66/67/69/69K, NEMA 13/4X, Chromium Plated Metal Bezel, Silver Alloy (Ag/Ni) Contact, Red, -40 to 70 deg C, 22 mm Diameter, 47 mm Height, 40 mm Width, 82 mm Depth

Key Specifications

Barcode (EAN-13)	3606480625053
SKU	SHNXB4BS8442
Brand	Schneider
Range Name	Harmony Style 4
Product Type	Emergency Stop

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	XB4BS8442
Bezel Material	Chromium Plated Metal
Actuator Head	Mushroom
Contact Configuration	1 Normally Closed
Colour	Red
Current	10 Amp
Contact Material	Silver Alloy (Ag/Ni)
Depth	82 mm
Diameter	22 mm
Height	47 mm
IP Rating	IP66/67/69/69K
Mounting Hole Diameter	22.5 mm
NEMA Rating	NEMA 13/4X
Mounting Method	Built In
Operating Cycles	300000 Cycles
Operator Type	Trigger Action and Mechanical Latching
Operator Action	Trigger
Reset Method	Turn to Release
Tightening Torque	0.8-1.2 Nm
Voltage	600 Volt
Temperature	-40 to 70 deg C
Terminal Connection	Screw Clamp/Plug-in/Printed Circuit Board/Faston
Width	40 mm
