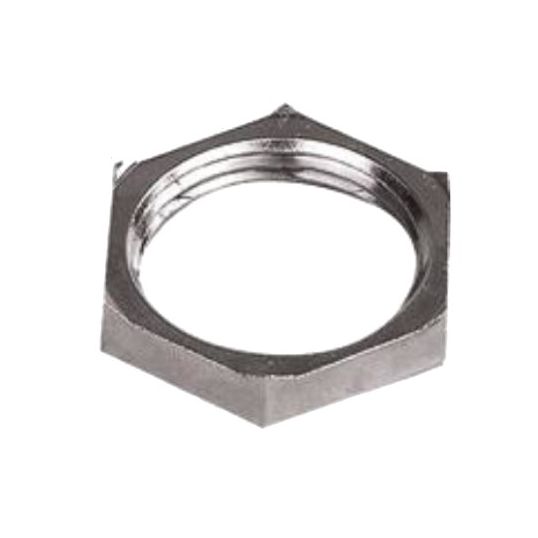

Lapp Kabel EMC Cable Gland Lock Nut Earth-Equipotential Hex M63 x 1.5 Nickel Plated Brass

$Lapp_Kabel\Lapp_Kabel_SKINDICHT_SM_PE_M.jpg$

Description

EMC Cable Gland Lock Nut, Earth-Equipotential, Hex, M63 x 1.5, 1.5 mm Pitch, 70 mm Width Across Flats, 80.83 mm Width Across Corners, Brass Body, Nickel Plated Finish, -20 to 100 deg C, 7 mm Depth

Key Specifications

SKU	LAP52103370
Brand	Lapp Kabel
Range Name	Skindicht SM-PE-M
Product Type	Gland Accessories

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Cutting edges cut through the insulating layer, thus guaranteeing an optimum EMC contact Suitable for all metric glands used in earthing and EMC applications For lacquered, anodized or powder-coated housings Good chemical resistance Mechanical resistance
Standard Pack Size	10
UNSPSC Class	39121400
UOM	EA
Vendor Product	52103370
Depth	7 mm
Finish	Nickel Plated
Temperature	-20 to 100 deg C
Width Across Corners	80.83 mm
Thread Size	M63 x 1.5
Thread Pitch	1.5 mm
Width Across Flats	70 mm
