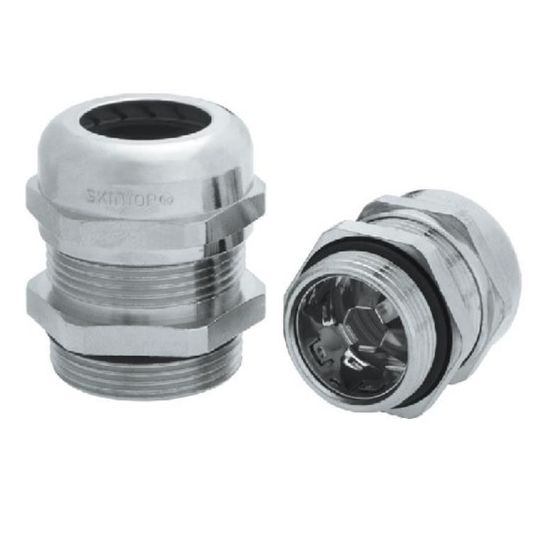

Lapp Kabel Cable Gland EMC VSD Screened Cable M50 x 1.5 27-35mm IP68

$Lapp_Kabel\Lapp_Kabel_53112670.jpg$

Description

Cable Gland, EMC VSD Screened Cable, M50 x 1.5, 10 mm Thread Length, 1.5 mm Pitch, 27 mm Min. Sheath OD, 35 mm Max. Sheath OD, IP68, CR Seal, Brass Body, Nickel Plated Finish, -25 to 100 deg C (Dynamic), -40 to 100 deg C (Fixed)

Key Specifications

SKU	LAP53112670
Brand	Lapp Kabel
Range Name	Skintop MS-SC-M
Product Type	Cable Glands EMC

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Low-resistance screen contact, optimum EMC protection Suitable for cables with and without inner sheath Highly conductive, flexible EMC contact for clamping various screen diameters Few operation steps, easy to assemble Also suitable for continuing the cable screen to another connection For telecommunication, industrial machinery and plant engineering, measurement and control technology, automation technology, EMC-compliant earthing of the copper braiding, or for cables with copper shaft sheath NBR O-ring Polyamide insert
Standard Pack Size	5
UNSPSC Class	39121400
UOM	EA
Vendor Product	53112670
Body Material	Brass
Finish	Nickel Plated
IP Rating	IP68
Max. Sheath OD	35 mm
Min. Sheath OD	27 mm
Seal Material	CR
Thread Pitch	1.5 mm
Thread Length	10 mm
Temperature	-25 to 100 deg C (Dynamic) -40 to 100 deg C (Fixed)
Thread Size	M50 x 1.5
