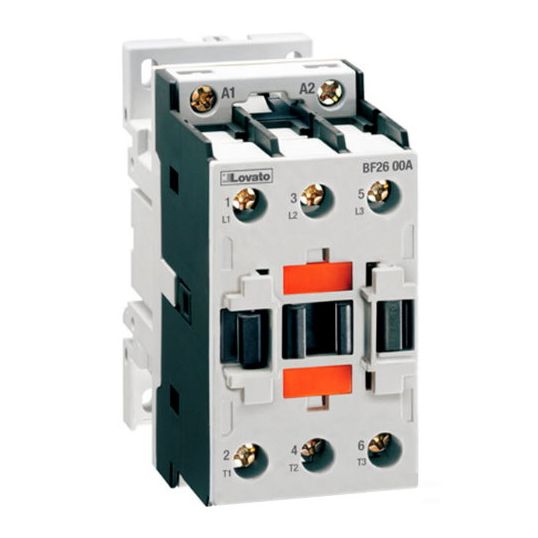

Lovato Contactor General Purpose DC Operated 3 Pole 18.5kW 26A AC3 45A AC1 24VDC DIN Rail/Base Mount

Description

Contactor General Purpose DC Operated, 24 Volt DC, AC3 Rating (kW): 18.5 at 55 deg C, AC3 Rating (Amps): 26, AC1 Rating (Amps): 45, 690 Volt, 3 Pole, Screw Terminal, DIN Rail/Base Mount, IP20, -50 to 70 deg C, 134.8 mm Height, 45 mm Width, 107.5 mm Depth

Key Specifications

SKU	LOVBF2600D024
Brand	Lovato
Range Name	Orange BF
Product Type	Contactors General

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Three-pole contactors, 9 to 110A in AC3 duty Four-pole contactors, 25 to 125 A in AC1 duty Power factor correction contactors, 7.5 to 60 kv at 400 volt Versions with 2NO+2NC or 4NC main power poles Highly conductive auxiliary contacts AC or DC auxiliary supply Low-consumption versions for control relays and 9-38 A contactors in AC3 duty
Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	LOVBF2600D024
AC1 Rating (Amps)	45 Amp AC1
AC3 Rating (Amps)	26 Amp AC3
AC3 Rating (kW)	18.5 kW
Contact Voltage	690 Volt
Depth	107.5 mm
Height	134.8 mm
IP Rating	IP20
Mounting Method	DIN Rail/Base
Number Of Poles	3 Pole
Operating Coil Voltage	24 Volt DC
Temperature	-50 to 70 deg C
Terminal Connection	Screw
Width	45 mm
