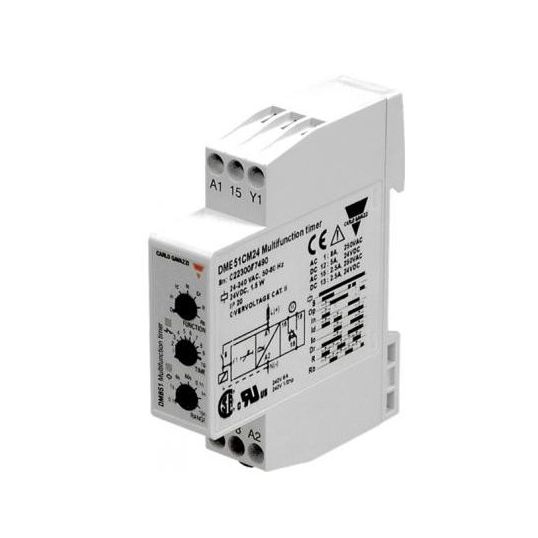

Carlo Gavazzi Time Delay Relay Electronic DIN 35 Rail Mount 1CO Multifunction 100ms-100Hr 12-240VAC/DC

Description

Time Delay Relay Electronic, 12-240 Volt AC/DC, 4 VA- 1.5 Watt, 1 Changeover Configuration, Multifunction, 100 Milli Seconds-100 Hours, 200000 Cycles, Screw Terminal, DIN Rail Mounting, -25 to 45 deg C, 80 mm Height, 22.5 mm Width, 109 mm Depth

Key Specifications

Barcode (EAN-13)	8030956002188
SKU	CGVDMB51CW24
Brand	Carlo Gavazzi
Product Type	Time Delay Relays

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	International certifications and wide install base ensuring delivery of a quality tested product
Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	DMB51CW24
Contact Configuration	1 Changeover
Depth	109 mm
Height	80 mm
Mounting Method	DIN Rail
Operating Cycles	200000 Cycles
Power Rating	4 VA- 1.5 Watt
Temperature	-25 to 45 deg C
Terminal Connection	Screw
Timing Function	Multifunction
Timing Range	100 Milli Seconds-100 Hours
Voltage	12-240 Volt AC/DC
Width	22.5 mm
