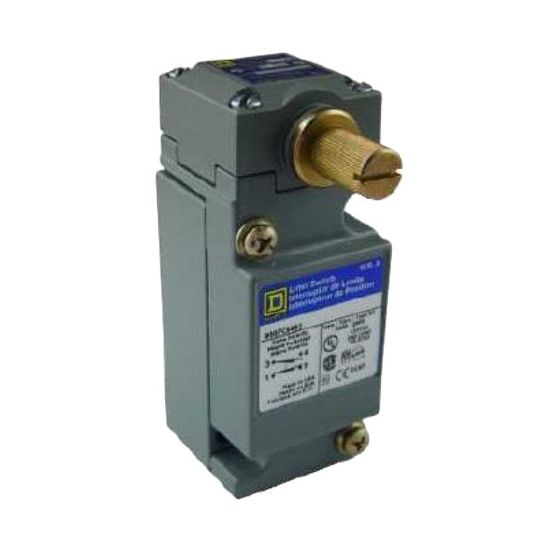

Schneider Limit Switch Assembly American Style 2NO-2NC Rotary Spring Return IP67

Description

Limit Switch Assembly American Style, 600 Volt AC, 10 Amp, 2NO+2NC, Rotary Spring Return, 22-12 AWG Cable, 1000000 Electrical, 10000000 Mechanical Cycles, IP67, Metal, -29 to 85 deg C, 102.11 mm Height, 39.37 mm Width, 63.5 mm Depth

Key Specifications

Barcode (EAN-13)	785901551027
SKU	SQD9007C62B2M11
Brand	Schneider
Range Name	Square D Class 9007
Product Type	Limit Switches

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	9007C62B2M11-NLA
Cable Size	22-12 AWG
Contact Configuration	2NO+2NC Rotary Spring Return
Current	10 Amp
Depth	63.5 mm
Height	102.11 mm
IP Rating	IP67
Operating Cycles	1000000 Electrical/10000000 Mechanical Cycles
Temperature	-29 to 85 deg C
Voltage	600 Volt AC
Width	39.37 mm
