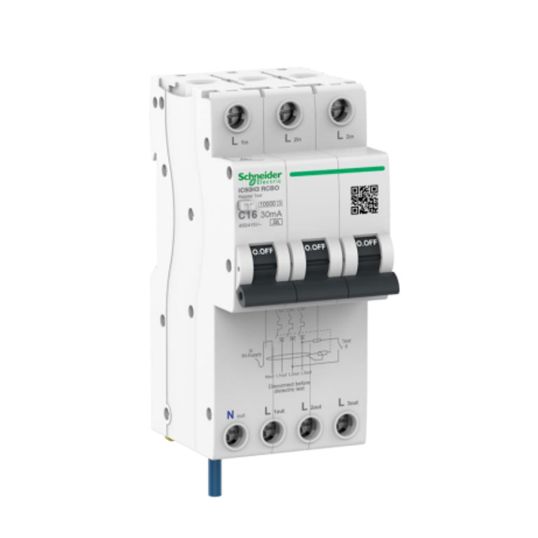

Schneider Acti9 iC60H3 RCBO 3P+N 20A 10kA 30mA Type A
Loading...
Description
Residual Current Circuit Breaker, 400-415 Volt, 20 Amp, 50/60 Hz, 10 kA Interrupt Capacity, 30 mA Trip Sensitivity, 3 + N Pole, Screw Terminal, IP20, DIN Rail/Chassis Mounting, 2.5 Nm Tightening Torque, 5 to 60 deg C, 112 mm Height, 54 mm Width, 77.2 mm Depth
Key Specifications
| Barcode (EAN-13) |
3606487022190
|
|---|---|
| SKU |
SHNA9DC1920
|
| Brand |
Schneider
|
| Range Name |
Acti 9 iC60H3
|
| Product Type |
Residual Current Circuit Breakers
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | A9DC1920 |
| Depth | 77.2 mm |
| Current | 20 Amp |
| Frequency | 50/60 Hz |
| Height | 112 mm |
| Interrupt Capacity | 10 kA |
| IP Rating | IP20 |
| Mounting Method | DIN Rail/Chassis |
| Number Of Poles | 3 Pole |
| Temperature | 5 to 60 deg C |
| Terminal Type | Screw |
| Tightening Torque | 2.5 Nm |
| Trip Sensitivity | 30 mA |
| Voltage | 400-415 Volt |
| Width | 54 mm |
