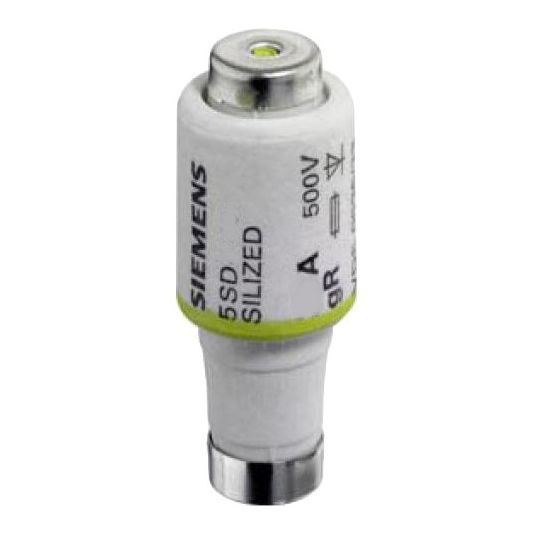

Siemens European Bottle Fuse Link Silized 50A 500VAC 50kA 500VDC 8kA 28x49mm
Loading...
Description
European Bottle Fuse Link Silized, AC Voltage: 500 VAC, DC Voltage: 500 VDC, 50 Amp, AC Interrupt Capacity: 50 kA, DC Interrupt Capacity: 8 kA, Class gR, White,-5 to 40 deg C Ambient, 18mm Cap Diameter, 28mm Diameter x 49mm Length, DIN Size DIII
Key Specifications
| Barcode (EAN-13) |
9323952327829
|
|---|---|
| SKU |
SIE5SD460
|
| Brand |
Siemens
|
| Product Type |
Fuse Links
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 5 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | 5SD460 |
| AC Interrupt Capacity | 50 kA |
| AC Voltage | 500 Volt AC |
| Cap Diameter | 18 mm |
| Colour | White |
| Current | 50 Amp |
| DC Interrupt Capacity | 8 kA |
| DC Voltage | 500 Volt DC |
| Dimensions | 28 mm Diameter x 49 mm Length |
| Standard Reference | DIN Size DIII |
| Temperature | -5 to 40 deg C Ambient |
| Utilisation Category | Class gR |
