Swe-Check Miniature Ceramic Fuse Slow Acting 6A 400VAC Class aM 8.5x31.5mm
Loading...
Description

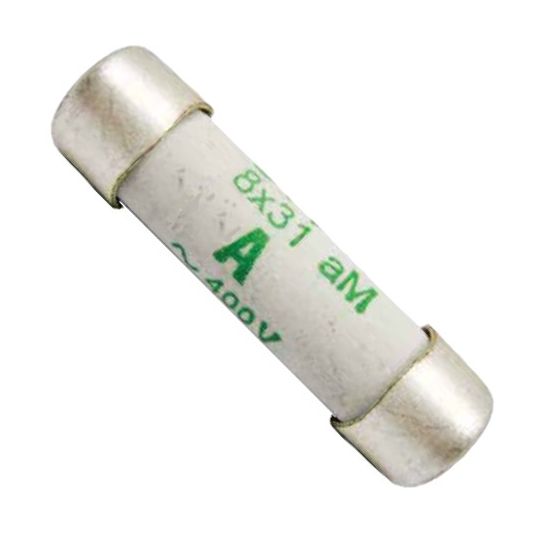

Miniature Ceramic Fuse Slow Acting, 400 VAC, 6 Amp, Interrupt Capacity: 20 kA, Class aM, Ceramic, 8.5mm Diameter x 31.5mm Length
Key Specifications
| SKU |
SWE-C-SB006
|
|---|---|
| Brand |
Swe-Check
|
| Product Type |
Miniature Fuses Ceramic
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | SWE-C-SB006 |
| Current | 6 Amp |
| Dimensions | 8.5 mm Diameter x 31.5 mm Length |
| Interrupt Capacity | 20 kA |
| Material | Ceramic |
| Utilisation Category | Class aM |
| Voltage | 400 Volt AC |
